SN74CBTS16212

Features: 5- Switch Connection Between Two PortsTTL-Compatible Input LevelsLatch-Up Performance Exceeds 250 mA Per JESD 17ESD Protection Exceeds 2000 V Per MIL-STD-833, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)Package Options Include Plastic Thin Shrink Small-Outline (DGG)...

product image

SN74CBTS16212 Picture
See larger image
SeekIC No. : 004498778 Detail

SN74CBTS16212: Features: 5- Switch Connection Between Two PortsTTL-Compatible Input LevelsLatch-Up Performance Exceeds 250 mA Per JESD 17ESD Protection Exceeds 2000 V Per MIL-STD-833, Method 3015; Exceeds 200 V Us...

SN74CBTS16212 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74CBTS16212
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 5- Switch Connection Between Two Ports
 TTL-Compatible Input Levels
 Latch-Up Performance Exceeds 250 mA Per JESD 17
 ESD Protection Exceeds 2000 V Per MIL-STD-833, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
 Package Options Include Plastic Thin Shrink Small-Outline (DGG), Thin Very Small-Outline (DGV), and Shrink Small-Outline (DL) Packages

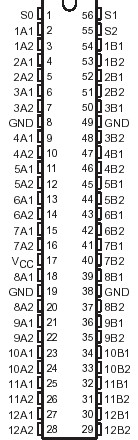

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 50 mA
Package thermal impedance, JA (see Note 2): DGG package . . . . . . . . . . . . . . . . . . . . . . .64°C/W
                                                                           DGV package . . . . . . . . . . .. . . . . . . . . . . . 48°C/W
                                                                           DL package . . . . . . . . . . . . . . . . . . . . . . .  56°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .65°C to 150°C


Description

The SN74CBTS16212 provides 24 bits of high-speed TTL-compatible bus switching or exchanging with Schottky diodes on the I/Os to clamp undershoot. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The device operates as a 24-bit bus switch or as a 12-bit bus exchanger, which provides data exchanging between the four signal ports via the data-select (S0S2) terminals.

The SN74CBTS16212 is characterized for operation from 40°C to 85°C.
