Product Details

Description



Features:

 Functionally Equivalent to QS3384 and QS3L384
 5- Switch Connection Between Two Ports
 TTL-Compatible Input Levels
 Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB, DBQ), Thin Very Small-Outline (DGV), and Thin Shrink Small-Outline (PW)
Packages

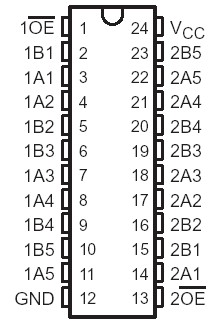

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .0.5 V to 7 V
Continuous channel current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .128 mA
Input clamp current, IIK (VI/O < 0)  . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .50 mA
Package thermal impedance, JA (see Note 2): DB package  . . . . . . . . .  . . . . . . . . . . . .63°C/W
                                                                          DBQ package  . . . . . .  .. . . . . . . . . . . . . 61°C/W
                                                                          DGV package  . . . . . . . . . . . . . . . . . . . . 86°C/W
                                                                          DW package  . . . . . . . . . . . . . . . . . . . .  .46°C/W
                                                                          PW package  . . . . . . . . . . . . . . . . . . . . . 88°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .65°C to 150°C


Description

The SN74CBTS3384 provides ten bits of high-speed TTL-compatible bus switching with Schottky diodes on the I/Os to clamp undershoot. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The SN74CBTS3384 is organized as two 5-bit bus switches with separate output-enable (OE) inputs. When OE is low, the switch is on, and port A is connected to port B. When OE is high, the switch is open and a high-impedance state exists between the two ports.

The SN74CBTS3384 is characterized for operation from 40°C to 85°C.
