SN74F1056

Features: *Designed to Reduce Reflection Noise*Repetitive Peak Forward Current 300mA*8-Bit Array Structure Suited for Bus-Oriented SystemsPinoutSpecificationsSteady-state reverse voltage, VR. . . . . . . . .. . . .. . . .. . . .. . . .. . . .. . .. . . . 7 VContinuous forward current, IF:Any D ter...

product image

SN74F1056 Picture
See larger image
SeekIC No. : 004498794 Detail

SN74F1056: Features: *Designed to Reduce Reflection Noise*Repetitive Peak Forward Current 300mA*8-Bit Array Structure Suited for Bus-Oriented SystemsPinoutSpecificationsSteady-state reverse voltage, VR. . . . ...

SN74F1056 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74F1056
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Designed to Reduce Reflection Noise
*Repetitive Peak Forward Current 300mA
*8-Bit Array Structure Suited for
  Bus-Oriented Systems


Pinout

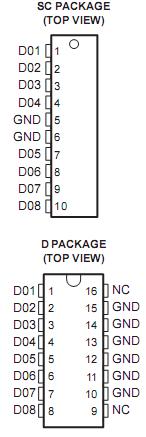

Connection Diagram


Specifications

Steady-state reverse voltage, VR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . 7 V
Continuous forward current, IF:Any D terminal from GND . .. . . . . . . . . . . . . . . 50 mA
                                                Total through all GND terminals. .. . . . . . . .  . .170 mA
Repetitive peak forward current, IFRM:Any D terminal from GND . . . . . . . . . . 300 mA
                                                         Total through all GND terminals . . . . . . . . 1.2 A
Continuous total power dissipation at (or below) 25 free-air temperature.500 mW
Operating free-air temperature range . . . . . . . . . . . . . .  . . . . . . . . . . . .. 0 to 70
Storage temperature range ,Tstg. . . . . . . . . . . . . . . . . . . . . . . . . . . .  -60 to 150


Description

    This Schottky barrier diode bus-termination array of the SN74F1056 is designed to reduce reflection noise on memory bus lines. This device consists of an 8-bit high-speed Schottky diode array suitable for a clamp to GND.

    The SN74F1056 is characterized for operation from 0 to 70.
