Features:

*Package Options Include Plastic
Small-Outline (D) Packages, Ceramic Chip
Carriers (FK), and Standard Plastic (N) and
Ceramic (J) 300-mil DIPs

Pinout

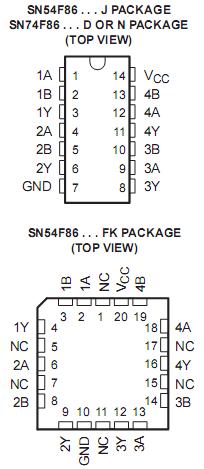

Connection Diagram

Specifications

Supply voltage range, V_CC...............................................-0.5 V to 7V
Input voltage range, V_I (see Note 1)...............................-1.2 V to 7V
Input current range....................................................-30 mA to 5 mA
Voltage range applied to any output in the high state..-0.5 V to V_CC
Current into any output in the low state..................................40 mA
Package thermal impedance, _JA (see Note 2): D package..127/W
N package....78/W
Storage temperature range, T_stg................................-65 to 150

Description

    These SN74F86 devices contain four independent 2-input exclusive-OR gates. They perform the Boolean function Y = A +B or Y = AB + AB in positive logic.

    A SN74F86 common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.

    The SN54F86 is characterized for operation over the full military temperature range of -55 to125. The SN74F86 is characterized for operation from 0 to 70.
