SN74FB1651

Features: *Compatible With IEEE 1194.1-1991 (BTL) *TTL A Port, Backplane Transceiver Logic (BTL) B Port*Open-Collector B-Port Outputs Sink100 mA*BIAS VCC Minimizes Signal Distortion During Live Insertion or Withdrawal*High-Impedance State During Power Up and Power Down*B-Port Biasing Network Preco...

product image

SN74FB1651 Picture
See larger image
SeekIC No. : 004498852 Detail

SN74FB1651: Features: *Compatible With IEEE 1194.1-1991 (BTL) *TTL A Port, Backplane Transceiver Logic (BTL) B Port*Open-Collector B-Port Outputs Sink100 mA*BIAS VCC Minimizes Signal Distortion During Live Inse...

SN74FB1651 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74FB1651
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Compatible With IEEE 1194.1-1991 (BTL)
*TTL A Port, Backplane Transceiver Logic (BTL) B Port
*Open-Collector B-Port Outputs Sink100 mA
*BIAS VCC Minimizes Signal Distortion
  During Live Insertion or Withdrawal
*High-Impedance State During Power Up
  and Power Down
*B-Port Biasing Network Preconditions the
  Connector and PC Trace to the BTL
  High-Level Voltage
*Packaged in Plastic High-Power
  Low-Profile Quad Flatpack


Pinout

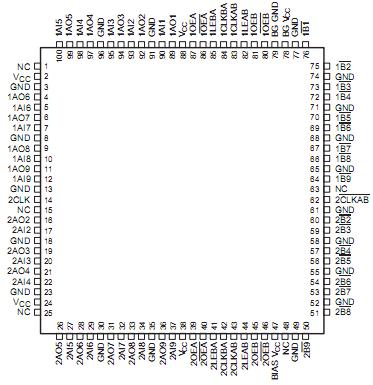

Connection Diagram


Specifications

Supply voltage range, VCC BIAS VCC, BG VCC....-0.5 V to 7V
Input voltage range, VI:Except B port ..............-1.2 V to 7V
                                      B port .......................-1.2 V to 3.5V
Voltage range applied to any B output in the disabled
   or power-off state,VO..................................-0.5 V to 3.5V
Voltage range applied to any output in the high state,
                                            VO : A port...........-0.5 V to VCC
Input clamp current, IIK:Except B port .......................-40mA
                                      B port ...................................-18mA
Current applied to any single output in the low state, IO:
                                      A port......................................48mA
                                      B port ...................................200mA
Package thermal impedance,  JA(see Note 1)...........22/W
Storage temperature range, Tstg....................-65 to 150


Description

    The SN74FB1650 device contains two 9-bit transceivers designed to translate signals between TTL and backplane transceiver-logic (BTL) environments. It is designed specifically to be compatible with IEEE Std 1194.1-1991.

    The SN74FB1651 B port operates at BTL-signal levels. The open-collector B ports are specified to sink 100 mA. Two output enables (OEB and OEB) are provided for the B outputs. When OEB is low, OEB is high, or VCC is less than 2.1 V, the B port is turned off.


    The SN74FB1651 A port operates at TTL-signal levels. The A outputs reflect the inverse of the data at the B port when the A-port output enable (OEA) is high. When OEA is low or when VCC is less than 2.1 V, the A outputs are in the high-impedance state.

    SN74FB1651 BIAS VCC establishes a voltage between 1.62 V and 2.1 V on the BTL outputs when VCC is not connected. BG VCC and BG GND are the supply inputs for the bias generator.

    The SN74FB1650 is characterized for operation from 0°C to 70°C.
