SN74HC574

Features: *Wide Operating Voltage Range of 2 V to 6 V*High-Current 3-State Noninverting Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads*Low Power Consumption, 80-A Max ICC*Typical tpd= 22 ns*±6-mA Output Drive at 5 V*Low Input Current of 1 A Max*Bus-Structured PinoutApplicationAudioAutomo...

product image

SN74HC574 Picture
See larger image
SeekIC No. : 004498958 Detail

SN74HC574: Features: *Wide Operating Voltage Range of 2 V to 6 V*High-Current 3-State Noninverting Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads*Low Power Consumption, 80-A Max ICC*Typical tpd= 22 n...

SN74HC574 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74HC574
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Wide Operating Voltage Range of 2 V to 6 V
*High-Current 3-State Noninverting Outputs
  Drive Bus Lines Directly or Up To 15 LSTTL Loads
*Low Power Consumption, 80-A Max ICC
* Typical tpd= 22 ns
*±6-mA Output Drive at 5 V
*Low Input Current of 1 A Max
*Bus-Structured Pinout


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless

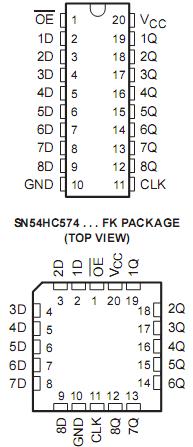

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . .  . . . . . . . . . . . . . . . . . . . .-0.5 V to 7 V
Input voltage range, VI(see Note 1)  . . . . . . . . . . . . . . . . . . . . . .±20 mA
Output voltage range, VO(see Note 1)  . . .  . . . .. .  . . . . . . . . . . .±20 mA
Continuous output current, IO(VO  = 0 to VCC)  . . . . .  . . . . . . . . .±35 mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . . ±70 mA
Package thermal impedance, JA(see Note 2):DB package . . . . . . 70/W
                                                                         DW package . . .. . .58/W
                                                                         N package. . .. . . ...69/W
                                                                         NS package. . .. . . .60/W
                                                                         PW package. . .. . . 83/W
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . .-65 to 150


Description

    These SN74HC574 octal edge-triggered D-type flip-flops feature 3-state outputs designed specifically for bus driving. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

    The eight flip-flops SN74HC574 enter data on the low-to-high transition of the clock (CLK) input.

    A SN74HC574 buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without interface or pullup components.
