Position: Home > Datasheet list > SN7 Series > Index S > SN74LV14ADR
Electronica China

Purchase SN74LV14ADR, In-stock SN74LV14ADR From SeekIC.

MFG:Texas Instruments (VA)  Category:Integrated Circuits (ICs)

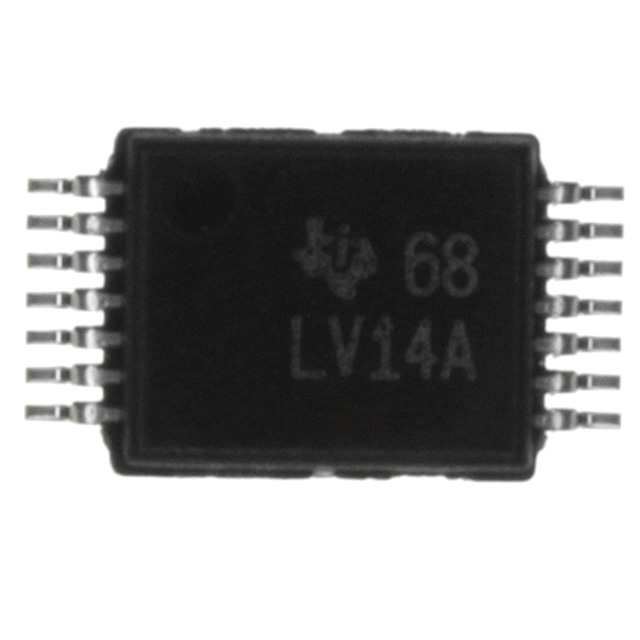

SN74LV14ADR Product Image

SN7 Series Datasheet download

Five Points

Part Number: SN74LV14ADR

Category: Integrated Circuits (ICs)

MFG: Texas Instruments (VA)





Descriptions: IC HEX SCHMITT-TRIG INV 14-SOIC

Price Break

1
25
100
250
500
1000

Unit Price

.46000
.36760
.25200
.18900
.14700
.12600

Extended Price

0.46
9.19
25.20
47.25
73.50
126.00

(All prices are in USD) Prices for reference only
Urgent Purchase

SN74LV14ADR General Description

IC HEX SCHMITT-TRIG INV 14-SOIC

SN74LV14ADR Parameters

Technical/Catalog InformationSN74LV14ADR
VendorTexas Instruments (VA)
CategoryIntegrated Circuits (ICs)
Number of Circuits6 - Hex
Package / Case14-SOIC (3.9mm Width), 14-SOL
Logic TypeInverter with Schmitt Trigger
PackagingDigi-Reel?
Mounting TypeSurface Mount
Number of Inputs1
Current - Output High, Low12mA, 12mA
Supply Voltage2 V ~ 5.5 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 5.5 V
Drawing Number296; 4040047-3; D; 14
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74LV14ADR
SN74LV14ADR
296 1678 6 ND
29616786ND
296-1678-6
