SN74LVC06ADRE4

Number of Input Lines : 6
Number of Output Lines : 6
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 125 C
Supply Voltage - Min : 1.65 V
Supply Voltage - Max : 3.6 V
Polarity : Inverting
Package / Case : SOIC-14


Features:

• OperateFrom1.65Vto3.6V
• Specified From 40°C to 85°C,40 to12°C,and55°Cto125°C
• Inputs and Open-Drain Outputs Accept Voltages up to 5.5 V
• Max t_pd of 3.7 ns at 3.3V
• I _off Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 250 mA PerJESD 17

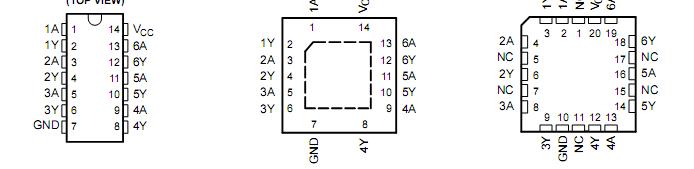

Pinout




Specifications

	MIN	MAX	UNIT
VCC Supply voltage range	0.5	6.5	V
VI Input voltage range(2)	0.5	6.5	V
VO Output voltage range	0.5	6.5	V
IIK Input clamp current		50	mA
IOK clamp current		50	mA
IO Continuous output current		±50	mA
Continuous current through VCC or GND		±100	mA
JA Package thermal impedance	D package(3)	86	°C/W
	DB package(3)	96
	DG Vpackage(3)	127
	NS package(3)	76
	PW package(3)	113
	RGY package(4)	47
TStorage temperature range	65	65 150	°C
Ptot Power dissipation(5)(6)		500	mW

Description

These hex inverter buffers/drivers are designed for 1.65-V to 3.6-V VCC operation. The outputs of the 'LVC06A devices are open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.The maximum sink current is 24mA. Inputs can be driven from either 3.3-V or5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.



Parameters:

Technical/Catalog Information	SN74LVC06ADRE4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Circuits	6 - Hex
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Logic Type	Inverter
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	1
Current - Output High, Low	24mA, 24mA
Supply Voltage	1.65 V ~ 3.6 V
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	1.65 V ~ 3.6 V
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74LVC06ADRE4 SN74LVC06ADRE4
