Purchase SN74LVC14ADBRG4, In-stock SN74LVC14ADBRG4 From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

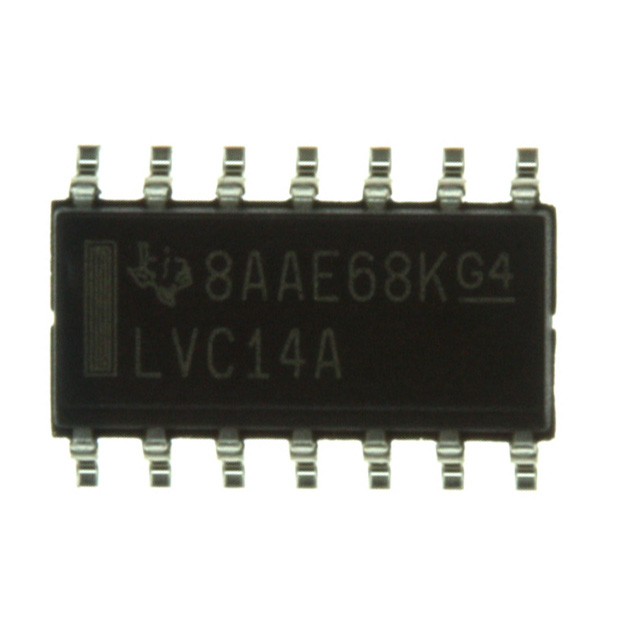

SN74LVC14ADBRG4

SN7 Series Datasheet download

Five Points

Part Number: SN74LVC14ADBRG4

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC HEX SCHMITT-TRIG INV 14-SSOP

Price Break

4000

Unit Price

.12750

Extended Price

510.00

(All prices are in USD) Prices for reference only
Urgent Purchase

SN74LVC14ADBRG4 General Description

IC HEX SCHMITT-TRIG INV 14-SSOP

SN74LVC14ADBRG4 Parameters

Technical/Catalog InformationSN74LVC14ADBRG4
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Circuits6 - Hex
Package / Case14-SSOP
Logic TypeInverter with Schmitt Trigger
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs1
Current - Output High, Low24mA, 24mA
Supply Voltage1.65 V ~ 3.6 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply1.65 V ~ 3.6 V
Drawing Number296; 4040065; DB; 14, 16, 20, 24, 28, 30, 38
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74LVC14ADBRG4
SN74LVC14ADBRG4

SN74LVC14ADBRG4 datasheet

SN74LVC14ADBRG4
PDF/DataSheet Download

Find SN74LVC14ADBRG4 Suppliers
