SN74LVC16245

Features: • Member of the Texas Instruments WidebusTM Family• EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C...

product image

SN74LVC16245 Picture
See larger image
SeekIC No. : 004499227 Detail

SN74LVC16245: Features: • Member of the Texas Instruments WidebusTM Family• EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC ...

SN74LVC16245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LVC16245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Member of the Texas Instruments WidebusTM Family
• EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
• Bus-Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
• Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages

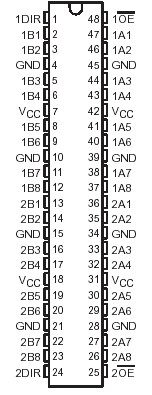

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4.6 V
Input voltage range, VI: (except I/O ports) (see Note 1) . . . . . . . . . . . .. . . .  . . . . ..0.5 V  to 4.6 V
Input voltage range, VI:(I/O ports) (see Notes 1 and 2). . . . . . . . . . . . . . . .   0.5 V to VCC + 0.5 V
Output voltage range, VO (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . .  . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 50 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ±100mA
Maximum power package dissipation at TA = 55°C (in still air)(see Note 3):DGG package  . . 0.85 W
                                                                                                                     DL package . .. . . . 1.2 W
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  40°C to 85°C
Storage temperature range  . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .65°C to 150°C


Description

This 16-bit (dual-octal) noninverting bus transceiver SN74LVC16245 is designed for 2.7-V to 3.6-V VCC operation.

The SN74LVC16245 is designed for asynchronous communication between data buses. The control function implementation minimizes external timing requirements.

This device SN74LVC16245 can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.

The SN74LVC16245 is characterized for operation from 40°C to 85°C.
