Features:

* Member of the Texas Instruments
   Widebus^TM Family
* Operates From 1.65 V to 3.6 V
* Inputs Accept Voltages to 5.5 V
* Max tpd of 4 ns at 3.3 V
* Typical V_OLP (Output Ground Bounce)
   <0.8 V at V_CC = 3.3 V, T_A = 25
* Typical V_OHV (Output VOH Undershoot)
   >2 V at V_CC = 3.3 V, TA = 25
* Supports Mixed-Mode Signal Operation on
   All Ports (5-V Input/Output Voltage With
   3.3-V V_CC)
* Ioff Supports Partial-Power-Down Mode
   Operation
* Latch-Up Performance Exceeds 250 mA Per
   JESD 17
* ESD Protection Exceeds JESD 22
   − 2000-V Human-Body Model (A114-A)
   − 200-V Machine Model (A115-A)
   − 1000-V Charged-Device Model (C101)

Pinout

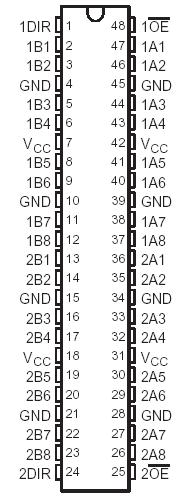

Connection Diagram

Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . . . . . .−0.5 V to 6.5 V
Input voltage range, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 6.5 V
Voltage range applied to any output in the high-impedance or power-off state, VO
   (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .−0.5 V to 6.5 V
Voltage range applied to any output in the high or low state, VO
   (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to V_CC + 0.5 V
Input clamp current, I_IK (V_I < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. . . . . . . . . . . . .−50 mA
Output clamp current, I_OK (V_O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . .−50 mA
Continuous output current, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Continuous current through each V_CC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..... . . . . . . .±100 mA
Package thermal impedance, _JA (see Note 3): DGG package . . . . . . . . . . . . . . . . . . . . .......... . . . . . . .70/W
                                                                          DGV package . . . . . . . . . . . . . . . . . . . . . . . .... . . . . . . .58/W
                                                                          DL package . . . . . . . . . . . . . . . . . . . . . . . ..... . . . . . . . .63/W
                                                                          GQL/ZQL package . . . . . . . . . . . . . . . . . . ....... . . . . . . .42/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .. .. . . .−65 to 150

Description

This 16-bit (dual-octal) noninverting bus transceiver SN74LVC16245A is designed for 1.65-V to 3.6-V VCC operation.

The SN74LVC16245A is designed for asynchronous communication between data buses. The control-function implementation minimizes external timing requirements.

This device SN74LVC16245A can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

To ensure the high-impedance state during power up or power down, SN74LVC16245A OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment.

This device SN74LVC16245A is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
