SN74LVC1G17YZVR

Buffers & Line Drivers Single Schmitt- Trigger Buffer

product image

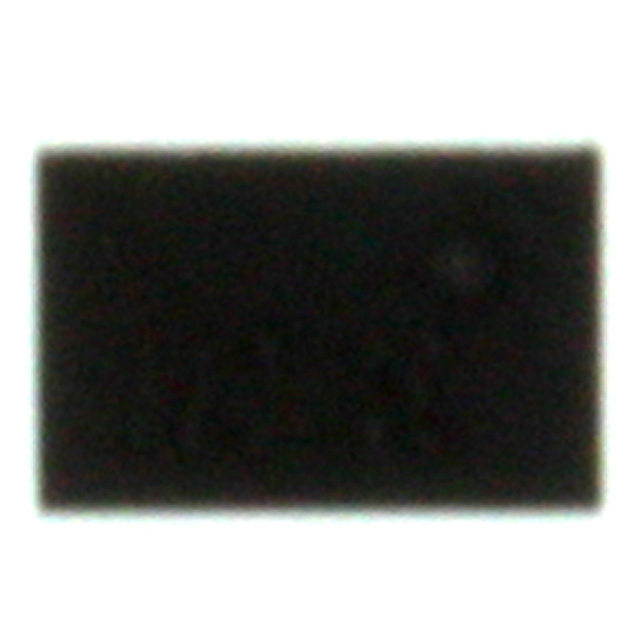

SN74LVC1G17YZVR Picture
SeekIC No. : 00403330 Detail

SN74LVC1G17YZVR: Buffers & Line Drivers Single Schmitt- Trigger Buffer

floor Price/Ceiling Price

US $ .16~.31 / Piece | Get Latest Price
Part Number:
SN74LVC1G17YZVR
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.31
  • $.22
  • $.19
  • $.16
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Input Lines : 1 Number of Output Lines : 1
Polarity : Non-Inverting Supply Voltage - Max : 5.5 V
Supply Voltage - Min : 1.65 V Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT Package / Case : DSBGA-4
Packaging : Reel

Description

Polarity : Non-Inverting
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Packaging : Reel
Supply Voltage - Max : 5.5 V
Number of Input Lines : 1
Number of Output Lines : 1
Supply Voltage - Min : 1.65 V
Package / Case : DSBGA-4


Features:

• Available in the Texas Instruments NanoStar ™ and NanoFree ™ Packages
• Supports 5-V V CC Operation
• Inputs Accept Voltages to 5.5 V
• Max t pd of 5 ns at 3.3 V
• Low Power Consumption, 10- µ A Max I CC
• ± 24-mA Output Drive at 3.3 V
• I off Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
   2000-V Human-Body Model (A114-A)
   200-V Machine Model (A115-A)
   1000-V Charged-Device Model (C101)



Pinout

  Connection Diagram


Specifications

Supply voltage range, VCC   . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 6.5 V
Input voltage range, VI (see Note 1)   . . . . . . . . . . . . . . . .−0.5 V to 6.5 V
Voltage range applied to any output in the high-impedance or power-off
state, VO(see Note 1)   . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 6.5 V

Output voltage range, VO (see Note 1)   . . . . . . . . .−0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0)   . . . . . . . . . . . . . . . . . . . . . . . . . −50 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . -50 mA
Continuous output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . ±100 mA
Package thermal impedance, JA (see Note 2): DBV package   .  206°C/W
                                                                           DCK package   . 252°C/W
                                                                           DRL package   . 142°C/W
                                                                        YEA/YZA package .154°C/W
                                                                         YEP/YZP package.132°C/W

Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . −65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
             2. The package thermal impedance is calculated in accordance with JESD 51-7.



Description

This single Schmitt-trigger buffer SN74LVC1G17 is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC1G17 contains one buffer and performs the Boolean function Y = A. The device functions as an independent buffer, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT−) signals.

NanoStarTM and NanoFreeTM package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device SN74LVC1G17 is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.




Parameters:

Technical/Catalog InformationSN74LVC1G17YZVR
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Logic TypeSchmitt Trigger - Buffer
Package / Case4-DSBGA
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Bits per Element1
Number of Elements1 - Single
Operating Temperature-40°C ~ 85°C
Voltage - Supply1.65 V ~ 5.5 V
Current - Output High, Low32mA, 32mA
Drawing Number296; 4206083; YZV; 4
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74LVC1G17YZVR
SN74LVC1G17YZVR
296 21060 2 ND
296210602ND
296-21060-2
