Features:

EPIC^TM (Enhanced-Performance Implanted CMOS) Submicron Process
Typical V_OLP (Output Ground Bounce) < 0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output VOH Undershoot) > 2 V at V_CC = 3.3 V, T_A = 25°C
Power Off Disables Outputs, Permitting Live Insertion
Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V V_CC)
Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW) Packages

Pinout

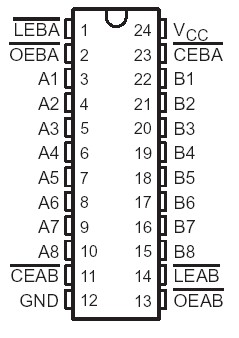

Connection Diagram

Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to6.5V
Input voltage range, V_I (see Note 1) . . . . . . . . . . . .. . . . . . . . .. . . . . . . . . . . . . . . .0.5 V to6.5 V
Voltage range applied to any output in the high-impedance or power-off state, V_O(see Note 1)_{. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .}0.5 V to 6.5 V
Voltage range applied to any output in the high or low state, V_O
(see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to V_CC+ 0.5 V
Input clamp current, I_IK (V_I < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .50 mA
Output clamp current, I_OK (V_O< 0 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .-50 mA
Continuous output current, I_O . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through V_CC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ±100mA
Package thermal impedance, _JA (see Note 3): D package . . . . . . . . . . . . . . . . . . . . . . . . .104°C/W
DB package . . . . . . . . . . . . . . . . . . . . . .. ..81°C/W
PW package . . . . . . . . . . . . . . . . . . . . . . .120°C/W
Storage temperature range,T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C

Description

The SN74LVC544A is designed as octal registered transceiver for 1.65V to 3.6V Vcc operation. It contains two sets of D-type latches for temporary storage of data flowing in either direction. Separate latch-enable (LEAB or LEBA) and output-enable (OEAB or OEBA) inputs are provided for each register to permit independent control in either direction of data flow.

SN74LVC544A has six features. (1)EPICE (enhanced-performance implanted CMOS) submicron process. (2)Typical Volp (output gound bounce) <0.8V at Vcc=3.3V, Ta=25°C. (3)Typical Vohv (output Voh undershoot) >2V at Vcc=3.3V, Ta=25°C. (4)Power off disables outputs, permitting live insertion. (5)Supports mixed-mode signal operation on all ports (5V input/ output voltage with 3.3V Vcc). (6)Package options include plastic small-outline (DW), hrink small-outline (DB), and thin shrink small-outline (PW) packages. Those are all the main features.

Some absolute maximum ratings of SN74LVC544A have been concluded into several points as follow. (1)Its supply voltage range would be from -0.5V to 6.5V. (2)Its input voltage range would be from -0.5V to 6.5V. (3)Its voltage range applied to any output in the high-impedance or power-off state would be from -0.5V to 6.5V. (4)Its voltage range applied to any output in the high or low state would be from -0.5V to Vcc+0.5V. (5)Its input clamp current would be -50mA. (6)Its output clamp current would be -50mA. (7)Its continuous output current would be +/-50mA. (8)Its continuous current through Vcc or GND would be +/-100mA. (9)Its package thermal impedance would be 104°C/W for DB package and would be 81°C/W for DW package and would be 120°C/W for PW package. (10)Its storage temperature range would be from -65°C to 150°C. It should be noted that stresses above those listed in absolute maximum ratings may cause permanent damage to device.

Also some electrical characteristics of SN74LVC544A are concluded as follow. (1)Its Voh would be min Vcc-0.2V. (2)Its Vol would be max 0.2V. (3)Its Ii would be max +/-5uA. (4)Its Ioff would be max +/-10uA. (5)Its Icc would be max 10uA. And so on. If you have any question or suggestion or want to know more information please contact us for details. Thank you!
