SN74LVTH16501

Supply voltage range, V _CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 4.6 V
Input voltage range, V_I  (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high-impedance
or power-off state, V_O  (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... .. 0.5 V to 7 V
Voltage range applied to any output in the high state, V_O  (see Note 1)  . . . . . . . .  0.5 V to V _CC + 0.5 V
Current into any output in the low state, I_O : SN54LVTH16501. . . . . . . . . . . . . . . . . . . . . . . .  ....... .  96 mA
                                                                        SN74LVTH16501 . . . . . . . . . . . . . . . . . . . . . . . . . .....  128 mA
Current into any output in the high state, I_O  (see Note 2): SN54LVTH16501  . . . . . . . . . . . . . . . . . .  48 mA
                                                                                              SN74LVTH16501 . . . . . . . . . . . . . .. . .... ..64 mA

Input clamp current, I_IK  (V_I < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 50 mA

Output clamp current, I_OK  (V _O < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  50 mA
 Package thermal impedance, JA (see Note 3): DGG package  . . . . . . . . . . . . . . . . . . . . . . . . . .......... 64/W
                                                                           DL package  . . . . . . . . . . . . . . . . . . . . . . . . . . ........... 56/W
Storage temperature range, T_stg   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... 65 to 150

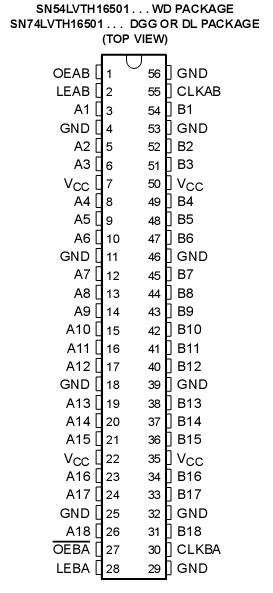

The SN74LVTH16501 devices are 18-bit universal bus transceivers designed for low-voltage (3.3-V) V_CCoperation, but with the capability to provide a TTL interface to a 5-V system environment.

Data flow in each direction is controlled by output-enable (OEAB and OEBA) , latch-enable (LEAB and LEBA), and clock (CLKAB and CLKBA) inputs. For A-to-B data flow, the devices SN74LVTH16501 operate in the transparent mode when LEAB is high. When LEAB is low, the A data is latched if CLKAB is held at a high or low logic level. If LEAB is low, the A data is stored in the latch/flip-flop on the low-to-high transition of CLKAB. When OEAB is high, the outputs are active. When OEAB is low, the outputs are in the high-impedance state.

About SN74LVTH16501,Data flow for B to A is similar to that of A to B but usesOEBA, LEBA, and CLKBA. The output enables are complementary (OEAB is active high and OEBA is active low).

About SN74LVTH16501,Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.

When V_CC  is between 0 and 1.5 V, the devices SN74LVTH16501 are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to V_CC  through a pullup resistor and OE  should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sinking/current-sourcing capability of the driver.

These devices SN74LVTH16501 are fully specified for hot-insertion applications using I_off  and power-up 3-state. The I_off   circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down which prevents driver conflict.
