Product Details

Description



Application

Audio                                www.ti.com/audio
Automotive                       www.ti.com/automotive
Broadband                        www.ti.com/broadband
Digital Control                   www.ti.com/digitalcontrol
Military                              www.ti.com/military
Optical Networking           www.ti.com/opticalnetwork
Security                            www.ti.com/security
Telephony                        www.ti.com/telephony
Video & Imaging               www.ti.com/video
Wireless                           www.ti.com/wireless


Pinout

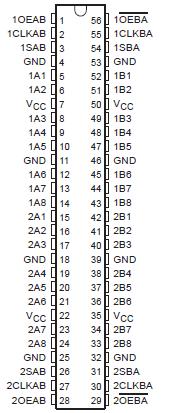

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .  . . . . . . . 0.5 V to 4.6 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . .. . . .. . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high-impedance
or power-off state, VO (see Note 1) . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . . . . . . . 0.5 V to 7 V
Voltage range applied to any output in the high state, VO (see Note 1) .0.5 V to VCC + 0.5 V
Current into any output in the low state, IO: SN54LVTH16652. . . . . . . . . . . . . . . . . . . . . 96 mA
                                                                       SN74LVTH16652  . . . . . . . . . . . . . . . . . . . 128 mA
Current into any output in the high state, IO (see Note 2): SN54LVTH16652  . . . . . . . . . 48 mA
                                                                                             SN74LVTH16652   . . . . . . . . . 64 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . . . . . . . . 50 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . .  . . . . . . .  . . . 50 mA
Package thermal impedance, qJA (see Note 3): DGG package  . . . . . . . . .  . . . . . . . . . . . 70°C/W
                                                                           DL package . . . . . . . . . . . . . . . . . . . . . . 63°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .. . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
             2. This current flows only when the output is in the high state and VO > VCC.
             3. The package thermal impedance is calculated in accordance with JESD 51.


Description

The SN74LVTH16652 devices are 16-bit bus transceivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit
transceivers or one 16-bit transceiver.

Output-enable (OEAB and OEBA) inputs are provided to control the transceiver functions. Select-control (SAB and SBA) inputs are provided to select whether real-time or stored data is transferred. A low input level selects real-time data, and a high input level selects stored data. The circuitry used for select control eliminates the typical decoding glitch that occurs in a multiplexer during the transition between stored and real-time data. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the SN74LVTH16652 devices.
