SN75LBC170

Features: Three DifferentiSignaling Rates† Up to 30 PackageSignaling Rates† Up to 30 MbpsLow Power and High SpeedDesigned for TIA/EIA-485, TIA/EIA-422, ISO8482, and ANSI X3.277 (HVD SCSI Fast20)ApplicationsCommon-Mode Bus Voltage Range7 V to 12 VESD Protection on Bus TerminalsExceeds 1...

product image

SN75LBC170 Picture
See larger image
SeekIC No. : 004499725 Detail

SN75LBC170: Features: Three DifferentiSignaling Rates† Up to 30 PackageSignaling Rates† Up to 30 MbpsLow Power and High SpeedDesigned for TIA/EIA-485, TIA/EIA-422, ISO8482, and ANSI X3.277 (HVD SCSI...

SN75LBC170 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN75LBC170
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Three DifferentiSignaling Rates† Up to 30 Package
Signaling Rates† Up to 30 Mbps
Low Power and High Speed
Designed for TIA/EIA-485, TIA/EIA-422, ISO8482, and ANSI X3.277 (HVD SCSI Fast20)Applications
Common-Mode Bus Voltage Range7 V to 12 V
ESD Protection  on Bus TerminalsExceeds 12 kV
DriverOutput Current up to ±60 mA
Thermal Shutdown Protection
Driver Positive and Negative CurrentLimiting
Power-Up, Power-Down Glitch-FreeOperation
Pin-Compatible With the SN75ALS170
Available in Shrink Small-Outline Package


Pinout

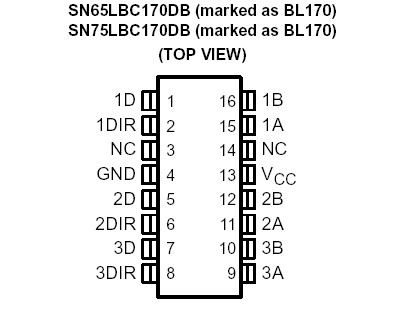

Connection Diagram


Specifications

Supply voltage, VCC (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .0.3 V to 6 V
Voltage range at any bus I/O terminal (steady state)  . . . . . . . . . . . . . . . . . .. . . . . . . .. . 10 V to 15 V
Voltage input range, A and B, (transient pulse through 100 Ω, see Figure 12). . . . . . . . . .30 V to 30 V
Voltage range at any D or DIR terminal  . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Electrostatic discharge: Human body model (A, B, GND) (see Note 2) . . . . .  . . . . . . . . . . . . . . . . . .12 kV
                                      All pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . .5 kV
                                     Charged-device model (all pins) (see Note 3)  . . . . . . . . .   . . . . . . . . . . . . . .1 kV
Continuous total power dissipation  . . . . . . . . . . . . . . . . . . . . . . . . . .See Power Dissipation Rating Table
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . .. . . . . . . . . . . . . . . . . . . .260


Description

The SN65LBC170 and SN75LBC170 aremonolithic integrated circuits designed forbidirectional data communication on multipointbus-transmission lines. Potential applicationsinclude serial or parallel data transmission, cabledperipheral buses with twin axial, ribbon, ortwisted-pair cabling. These devices are suitablefor FAST-20 SCSI and can transmit or receivedata pulses as short as 25 ns, with skew lessthan 3 ns.

These devices SN75LBC170 combine three 3-state differentialline drivers and three differential input linereceivers, all of which operate from a single 5-Vpower supply.

The driver differential outputs and the receiverdifferential inputs areconnected internally to formthree differential input/output (I/O) bus ports thatare designed to offer minimum loading to the buswhenever the driver is disabled or VCC = 0. Theseports feature a wide common-mode voltage rangemaking the device SN75LBC170 suitable for party-lineapplications over long cable runs.

The driver's active-high enable and the receiver's active-low enable are tied together internally and provide a direction input for each driver/receiver pair.The SN75LBC170 is characterized for operation over the temperature range of 0 to 70. The SN65LBC170is characterized for operation over the temperature range of 40 to 85.
