SN75LVDS85

· 21:3 Data Channel Compression at up to 163 Million Bytes per Second Throughput
· Suited for SVGA, XGA, or SXGA Data Transmission From Controller to Display With Very Low EMI
· 21 Data Channels Plus Clock In Low-Voltage TTL and 3 Data Channels Plus Clock Out Low-Voltage Differential
· Operates From a Single 3.3-V Supply and 250 mW (Typ)
· 5-V Tolerant Data Inputs
· ESD Protection Exceeds 6 kV
· SN75LVDS84 Has Falling Clock-Edge Triggered Inputs, SN75LVDS85 Has Rising Clock-Edge-Triggered Inputs
· Packaged in Thin Shrink Small-Outline Package (TSSOP) With 20-Mil Terminal Pitch
· Consumes Less Than 1 mW When Disabled
· Wide Phase-Lock Input Frequency Range: 31 MHz to 68 MHz
· No External Components Required for PLL
· Outputs Meet or Exceed the Requirements of ANSI EIA/TIA-644 Standard
· Improved Replacement for the DS90C561

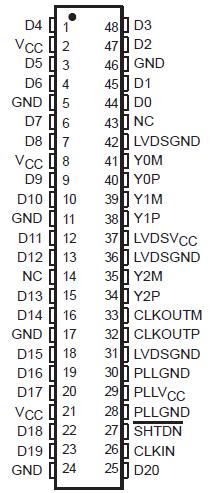

Supply voltage range, V_CC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4 V
Output voltage range, V_O (all terminals) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to V_CC + 0.5 V
Input voltage range, V_I (all terminals) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 5.5 V
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . .65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . .. . . . . . . . . . 260

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltage values are with respect to the GND terminals.

The SN75LVDS84 and SN75LVDS85 FlatLink transmitters each contain three 7-bit parallel-load serial-out shift registers, a 7* clock synthesizer, and four low-voltage differential signaling (LVDS) line drivers in a single integrated circuit. These functions allow 21 bits of single-ended low-voltage TTL (LVTTL) data to be synchronously transmitted over three balanced-pair conductors for receipt by a compatible receiver, such as the SN75LVDS82 or SN75LVDS86.

When transmitting, data bits D0 D20 are each loaded into registers of the SN75LVDS84 upon the falling edge and into the registers of the SN75LVDS85 on the rising edge of the input clock signal (CLKIN). The frequency of CLKIN is multiplied seven times and then used to unload the data registers in 7-bit slices and serially. The three serial streams and a phase-locked clock (CLKOUT) are then output to LVDS output drivers. The frequency of CLKOUT is the same as the input clock, CLKIN.
