SP3220EU

Features: ·Meets True RS-232 Protocol Operation From A +3.0V to +5.5V Power Supply·Minimum 250 Kbps Data Rate (SP3220EB) or 1Mbps Data Rate (SP3220EU) under Fully Load·1µA Low-Power Shutdown With Receivers Active·Interoperable With EIA/TIA - 232 and adheres to EIA/TIA - 562 Down to +2.7V Pow...

product image

SP3220EU Picture
See larger image
SeekIC No. : 004500313 Detail

SP3220EU: Features: ·Meets True RS-232 Protocol Operation From A +3.0V to +5.5V Power Supply·Minimum 250 Kbps Data Rate (SP3220EB) or 1Mbps Data Rate (SP3220EU) under Fully Load·1µA Low-Power Shutdown W...

SP3220EU Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP3220EU
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Meets True RS-232 Protocol Operation From A +3.0V to +5.5V Power Supply
·Minimum 250 Kbps Data Rate (SP3220EB) or 1Mbps Data Rate (SP3220EU) under Fully Load
·1µA Low-Power Shutdown With Receivers Active
·Interoperable With EIA/TIA - 232 and adheres to EIA/TIA - 562 Down to +2.7V Power Source
·Pin-Compatible With The MAX3221E Device Without The AUTO ON-LINE® Feature
·ESD Specifications:
+15kV Human Body Model
+15kV IEC1000-4-2 Air Discharge
+8kV IEC1000-4-2 Contact Discharge

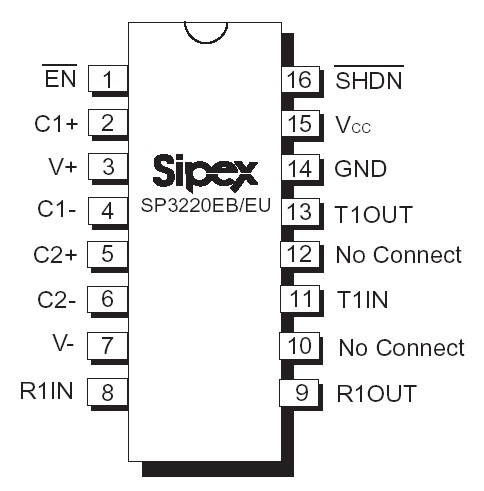

Pinout

Connection Diagram




Specifications

VCC.....................................................................-0.3V to +6.0V
V+ (NOTE 1)........................................................-0.3V to +7.0V
V- (NOTE 1).........................................................+0.3V to -7.0V
V+ + |V-| (NOTE 1).............................................................+13V
ICC (DC VCC or GND current)........................................+100mA
Input Voltages
TxIN, EN ............................................................ -0.3V to +6.0V
RxIN ................................................................................. +25V
Output Voltages
TxOUT ........................................................................... +13.2V
RxOUT ...................................................... -0.3V to (VCC+0.3V)
Short-Circuit Duration
TxOUT ..................................................................... Continuous
Storage Temperature ....................................... -65 to +150
Power Dissipation Per Package
16-pin SSOP (derate 9.69mW/above+70) ............... 775mW
16-pin TSSOP (derate 10.5mW/ above +70) ............ 840mW
16-pin Wide SOIC (derate 11.2mW/ above+70)....... 900mW

Specifications
No. of Tx 1
No. of Rx 1
Data Rate (kbps) 1000
ESD (KV) 15
VccMIN.(V) 3
VccMAX.(V) 5.5
Vcc (V) 3.3
Int.Chrg. Pump Yes
No. ofExtCaps 4
NomCap.Value(F) 0.1
Shutdown
TTLTri-state Yes





Description

The SP3220EB/EU device is an RS-232 driver/receiver solution intended for portable or handheld applications such as notebook or palmtop computers. The SP3220EB/EU device has a highefficiency, charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge pump allows the SP3220EB/EU device to deliver true RS-232 performance from a single power supply ranging from +3.3V to +5.0V. The ESD tolerance of the SP3220EB/EUE device is over ±15kV for both Human Model and IEC1000-4-2 Air discharge test methods.
The SP3220EB/EU device has a low-power shutdown mode where the driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1µA.
