Part Number: SP3232EB
Description: The SP3222EB/3232EB series is an RS-232 transceiver solution intended for portable or hand-held applications such as no...
- Table of contents:
SP3232EB
-
Suppliers
DataSheet
General Description
SP3232EB General Description
The SP3222EB/3232EB series is an RS-232 transceiver solution intended for portable or hand-held applications such as notebook or palmtop computers. The SP3222EB/3232EB series has a high-efficiency, charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge pump allows the SP3222EB/3232EB series to deliver true RS- 232 performance from a single power supply ranging from +3.0V to +5.5V. The SP3222EB/ 3232EB are 2-driver/2-receiver devices. This series is ideal for portable or hand-held applications such as notebook or palmtop computers. The ESD tolerance of the SP3222EB/ 3232EB devices are over ±15kV for both Human Body Model and IEC1000-4-2 Air discharge test methods. The SP3222EB device has a low-power shutdown mode where the devices' driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1µA.
SP3232EB Maximum Ratings
VCC .................................................................... -0.3V to +6.0V
V+ (NOTE 1) ....................................................... -0.3V to +7.0V
V- (NOTE 1) ........................................................ +0.3V to -7.0V
V+ + |V-| (NOTE 1) ........................................................... +13V
ICC (DC VCC or GND current) ..................................... ±100mA
Input Voltages
TxIN, EN ............................................................ -0.3V to +6.0V
RxIN ................................................................................ ±25V
Output Voltages
TxOUT ........................................................................... ±13.2V
RxOUT ..................................................... -0.3V to (VCC + 0.3V)
Short-Circuit Duration
TxOUT ..................................................................... Continuous
Storage Temperature ....................................... -65 to +150
Power Dissipation Per Package
20-pin SSOP (derate 9.25mW/ above +70) ............. 750mW
18-pin PDIP (derate 15.2mW/ above +70) ............ 1220mW
18-pin SOIC (derate 15.7mW/ above +70) ............ 1260mW
20-pin TSSOP (derate 11.1mW/ above +70) ............ 890mW
16-pin SSOP (derate 9.69mW/ above +70) .............. 775mW
16-pin PDIP (derate 14.3mW/ above +70) ............. 1150mW
16-pin Wide SOIC (derate 11.2mW/oC above +70) .... 900mW
16-pin TSSOP (derate 10.5mW/ above +70) ............. 850mW
16-pin nSOIC (derate 13.57mW/ above +70) ......... 1086mW
V+ (NOTE 1) ....................................................... -0.3V to +7.0V
V- (NOTE 1) ........................................................ +0.3V to -7.0V
V+ + |V-| (NOTE 1) ........................................................... +13V
ICC (DC VCC or GND current) ..................................... ±100mA
Input Voltages
TxIN, EN ............................................................ -0.3V to +6.0V
RxIN ................................................................................ ±25V
Output Voltages
TxOUT ........................................................................... ±13.2V
RxOUT ..................................................... -0.3V to (VCC + 0.3V)
Short-Circuit Duration
TxOUT ..................................................................... Continuous
Storage Temperature ....................................... -65 to +150
Power Dissipation Per Package
20-pin SSOP (derate 9.25mW/ above +70) ............. 750mW
18-pin PDIP (derate 15.2mW/ above +70) ............ 1220mW
18-pin SOIC (derate 15.7mW/ above +70) ............ 1260mW
20-pin TSSOP (derate 11.1mW/ above +70) ............ 890mW
16-pin SSOP (derate 9.69mW/ above +70) .............. 775mW
16-pin PDIP (derate 14.3mW/ above +70) ............. 1150mW
16-pin Wide SOIC (derate 11.2mW/oC above +70) .... 900mW
16-pin TSSOP (derate 10.5mW/ above +70) ............. 850mW
16-pin nSOIC (derate 13.57mW/ above +70) ......... 1086mW
SP3232EB Features
·Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply
·250kbps Transmission Rate Under Load
·1µA Low-Power Shutdown with Receivers Active (SP3222EB)
·Interoperable with RS-232 down to +2.7V power source
·Enhanced ESD Specifications:
±15kV Human Body Model
±15kV IEC1000-4-2 Air Discharge
±8kV IEC1000-4-2 Contact Discharge
·250kbps Transmission Rate Under Load
·1µA Low-Power Shutdown with Receivers Active (SP3222EB)
·Interoperable with RS-232 down to +2.7V power source
·Enhanced ESD Specifications:
±15kV Human Body Model
±15kV IEC1000-4-2 Air Discharge
±8kV IEC1000-4-2 Contact Discharge

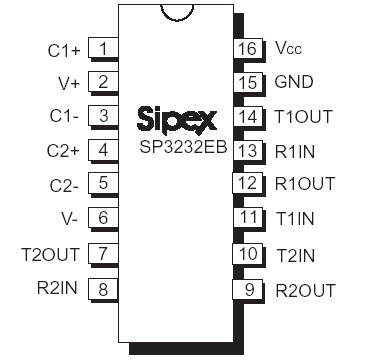

SP3232EB Connection Diagram
SP3232EBCA
