SP3238

Features: Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply Interoperable with EIA/TIA-232 and adheres to EIA/TIA-562 down to a +2.7V power source AUTO ON-LINE® circuitry automatically wakes up from a 1µA shutdown Minimum 250Kbps data rate under load Regulated Charge...

product image

SP3238 Picture
See larger image
SeekIC No. : 004500350 Detail

SP3238: Features: Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply Interoperable with EIA/TIA-232 and adheres to EIA/TIA-562 down to a +2.7V power source AUTO ON-LINE® circuitry au...

SP3238 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP3238
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply
Interoperable with EIA/TIA-232 and adheres to EIA/TIA-562 down to a +2.7V power source
AUTO ON-LINE® circuitry automatically wakes up from a 1µA shutdown
Minimum 250Kbps data rate under load
Regulated Charge Pump Yields Stable RS-232 Outputs Regardless of VCC Variations
ESD Specifications: +2kV Human Body Model


Pinout

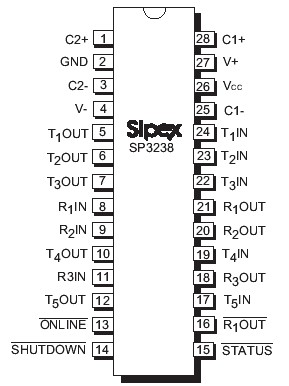

Connection Diagram


Specifications

VCC.....................................................-0.3V to +6.0V
V+ (NOTE 1).......................................-0.3V to +7.0V
V- (NOTE 1)........................................+0.3V to -7.0V
V+ + |V-| (NOTE 1)...........................................+13V
ICC (DC VCC or GND current).......................+100mA
Input Voltages
TxIN, ONLINE,
SHUTDOWN, .....................................-0.3V to +6.0V
RxIN.................................................................+25V
Output Voltages
TxOUT...........................................................+13.2V
RxOUT, STATUS.......................-0.3V to (VCC + 0.3V)
Short-Circuit Duration
TxOUT.....................................................Continuous
Storage Temperature....................-65°C to +150°C
Power Dissipation per package
28-pin SSOP
(derate 11.2mW/oC above +70oC)...............900mW
28-pin TSSOP
(derate 13.2mW/oC above +70oC).............1100mW


Description

The SP3238 device is an RS-232 transceiver solution intended for portable or hand-held applications such as notebook and palmtop computers. It uses an internal high-efficiency, charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge pump and Sipex's driver architecture allow the device to deliver compliant RS-232 performance from a single power supply ranging from +3.0V to +5.0V. The SP3238 is a 5-driver/3-receiver device, ideal for laptop/notebook computer and PDA applications. It includes one complementary receiver that remains alert to monitor an external device's Ring Indicate signal while the device is shutdown.

The AUTO ON-LINE® feature allows the device SP3238 to automatically "wake-up" during a shutdown state when an RS-232 cable is connected and a connected peripheral is turned on. Otherwise, the device automatically shuts itself down drawing less than 1µA.
