General Description
SP3249E General Description
The SP3249E device is an RS-232 transceiver solution intended for portable or hand-held applications such as notebook and palmtop computers. The SP3249E uses an internal high-efficiency, charge-pump power supply that requires only 0.1F capacitors in 3.3V operation. This charge pump and Sipex's driver architecture allow the SP3249E device to deliver compliant RS-232 performance from a single power supply ranging from +3.0V to +5.0V. The SP3249E is a 5-driver/3-receiver device, ideal for laptop/notebook computer and PDA applications.
SP3249E Maximum Ratings
These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability and cause permanent damage to the device.
VCC........................................................................................................-0.3V to +6.0V
V+ (NOTE 1)...........................................................................................-0.3V to +7.0V
V- (NOTE 1)........................................................................................... +0.3V to -7.0V
V+ + |V-| (NOTE 1)...............................................................................................+13V
ICC (DC VCC or GND current)..........................................................................+100mA
Input Voltages
TxIN ......................................................................................................-0.3V to +6.0V
RxIN.....................................................................................................................+25V
Output Voltages
TxOUT................................................................................................................+13.2V
RxOUT,........................................................................................-0.3V to (VCC + 0.3V)
Short-Circuit Duration
TxOUT.........................................................................................................Continuous
Storage Temperature......................................................................-65°C to +150°C
Note 1: V+ and V- can have maximum magnitudes of 7V, but their absolute difference cannot exceed 13V.
SP3249E Features
· Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply
· Interoperable with EIA/TIA-232 and adheres to EIA/TIA-562 down to a +2.7V power source
· Minimum 250Kbps data rate under load
· Regulated Charge Pump Yields Stable RS-232 Outputs Regardless of VCC Variations
· Enhanced ESD Specifications:
+15KV Human Body Model
+15KV IEC1000-4-2 Air Discharge
+8KV IEC1000-4-2 Contact Discharge
· Interoperable with EIA/TIA-232 and adheres to EIA/TIA-562 down to a +2.7V power source
· Minimum 250Kbps data rate under load
· Regulated Charge Pump Yields Stable RS-232 Outputs Regardless of VCC Variations
· Enhanced ESD Specifications:
+15KV Human Body Model
+15KV IEC1000-4-2 Air Discharge
+8KV IEC1000-4-2 Contact Discharge

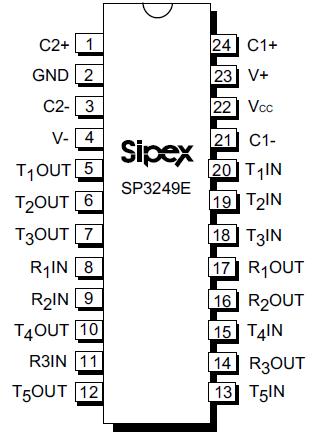

SP3249E Connection Diagram
SP3249ECA
