Product Details

Description



Features:

*+5V Only, Single Supply Operation
* Low Power Shutdown
* 28-Pin SOIC Packaging
* 3 Drivers, 5 Receivers RS-232
* Complete AppleTalk™ Interface
* High Data Rates
10Mbps Differential Transceivers
460kbps Single-Ended Transceivers




Pinout

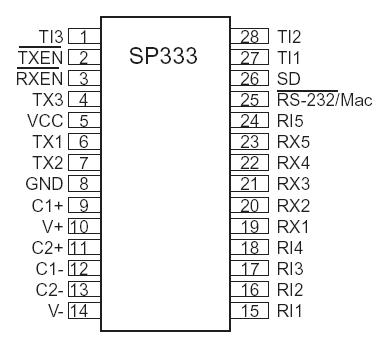

Connection Diagram




Specifications

Specifications
No. of Tx 3
No. of Rx 5
Data Rate (kbps) 5000
Vcc (V) 5
ESD (KV) 2
SupportedProtocols AppleTalk, RS232
Comments **Obsolete. See SP334 for Recommended Upgrade. **


VCC..................................................................................................+12V
Input Voltages
Logic....................................................-0.3V to (VCC+0.5V)
Drivers.................................................-0.3V to (VCC+0.5V)
Receivers...................................................................±15V
Driver Outputs................................................................................±14V
Storage Temperature......................................................-65 to +150
Power Dissipation......................................................................1000mW




Description

The SP333 is a monolithic device that supports both Macintosh™ and PC serial interfaces. RS-232 mode offers three (3) RS-232 drivers and five (5) RS-232 receivers. Mac mode includes a differential driver and a single-ended inverting driver. Receivers in Mac mode include one differential receiver, one non-inverting single-ended receiver and one inverting single-ended receiver. An on-chip charge pump allows +5V-only operation, and a low power Shutdown mode makes the SP333 ideal for battery powered applications. The interface mode can be changed at any time by a mode select pin.
