SP488

PinoutSpecificationsVCC ........................................................................................ +7VInput VoltagesLogic ............................................................ 0.5V to (VCC +0.5V)Receiver ............................................................................

product image

SP488 Picture
See larger image
SeekIC No. : 004500446 Detail

SP488: PinoutSpecificationsVCC ........................................................................................ +7VInput VoltagesLogic ............................................................ 0...

SP488 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP488
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

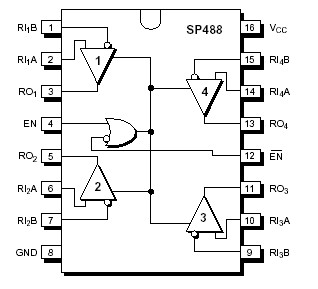

Connection Diagram




Specifications

VCC ........................................................................................ +7V
Input Voltages
Logic ............................................................ 0.5V to (VCC +0.5V)
Receiver ................................................................................ ±14V
Receiver Output Voltage .............................. 0.5V to (VCC +0.5V)
Input Currents
Logic .................................................................................. ±25mA
Storage Temperature ........................................ 65°C to +150°C
Power Dissipation
Plastic DIP ........................................................................ 375mW
(derate 7mW/°C above +70°C)
Small Outline .................................................................... 375mW
(derate 7mW/°C above +70°C)
Lead Temperature (soldering, 10 sec) ............................... 300°C

Specifications
Vcc (V) 5
No. of Tx 0
No. of Rx 4
Duplex Quad
Data Rate (kbps) 10000
ESD (KV) 2
Rx Fail-Safe Open Yes
Rx Fail-Safe Short No
Shutdown
Multi-Drop Nodes 32





Description

The SP488 and SP489 are lowpower quad differential line receivers meeting RS-485 and RS-422 standards. The SP488 features a common receiver enable control; the SP489 provides independent receiver enable controls for each pair of receivers. Both feature tristate outputs and wide common mode input range. The receivers have a failsafe feature which forces a logic "1" output when receiver inputs are left floating. Both are available in 16pin plastic DIP and SOIC packages.
