Part Number: SP6120HV
Description: The SP6120HV is a fixed frequency, voltage mode, synchronous PWM controller designed to work from a si...
- Table of contents:
SP6120HV
-
Suppliers
DataSheet
General Description
SP6120HV General Description
The SP6120HV is a fixed frequency, voltage mode, synchronous PWM controller designed to work from a single 12V, 5V or 3.3V input supply. Sipex's unique "AnyFETTM" Technology allows the SP6120HV to be used for resolving a multitude of price/performance trade-offs. It is separated from the PWM controller market by being the first controller to offer precision, speed, flexibility, protection and efficiency over a wide range of operating conditions.
SP6120HV Maximum Ratings
VCC ....................................................................... 13.2V
BST ........................................................................... 19V
BST-SWN ............................................................... 13.2V
SWN ........................................................... -1V to 13.2V
GH .................................................... -0.3V to BST +0.3V
GH-SWN ................................................................ 13.2V
All Other Pins ................................... -0.3V to VCC +0.3V
Peak Output Current < 10µs
GH, GL ....................................................................... 2A
Operating Temperature Range
SP6120C .................................................. 0°C to +70°C
SP6120E ................................................ -40°C to +85°C
Junction Temperature, TJ ................................... +125°C
Storage Temperature Range ............... -65°C to +150°C
Power Dissipation
Lead Temperature (soldering 10 sec) ................ +300°C
ESD Rating ........................................................ 2kV HBM
BST ........................................................................... 19V
BST-SWN ............................................................... 13.2V
SWN ........................................................... -1V to 13.2V
GH .................................................... -0.3V to BST +0.3V
GH-SWN ................................................................ 13.2V
All Other Pins ................................... -0.3V to VCC +0.3V
Peak Output Current < 10µs
GH, GL ....................................................................... 2A
Operating Temperature Range
SP6120C .................................................. 0°C to +70°C
SP6120E ................................................ -40°C to +85°C
Junction Temperature, TJ ................................... +125°C
Storage Temperature Range ............... -65°C to +150°C
Power Dissipation
Lead Temperature (soldering 10 sec) ................ +300°C
ESD Rating ........................................................ 2kV HBM
SP6120HV Typical Application
DSP
Microprocessor Core
I/O & Logic
Industrial Control
Distributed Power
Low Voltage Power
Microprocessor Core
I/O & Logic
Industrial Control
Distributed Power
Low Voltage Power

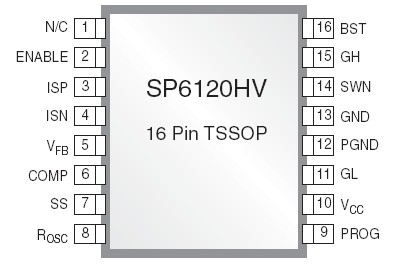

SP6120HV Connection Diagram
SP6120HV
PDF/DataSheet Download
- Datasheet: SP6120HV
- File Size: 426850 KB
- Manufacturer: SIPEX [Sipex Corporation]
- Click here to Download
