Part Number: SP6137
Description: The SP6137 is a synchronous step-down switching regulator controller optimized for high efficiency. Th...
- Table of contents:
SP6137
-
Suppliers
DataSheet
General Description
SP6137 General Description
The SP6137 is a synchronous step-down switching regulator controller optimized for high efficiency. The part is designed to be especially attractive for dual supply, 12V step down with 5V used to power the controller. This lower VCC voltage minimizes power dissipation in the part. The SP6137 is designed to drive a pair of external NFETs using a fixed 900kHz frequency, PWM voltage mode architecture. Protection features include UVLO, thermal shutdown and output short circuit protection. The SP6137 is available in the cost and space saving 10-pin MSOP.
SP6137 Maximum Ratings
VCC ............................................................................................... 7V
BST ............................................................................................. 27V
BST-SWN ......................................................................... -0.3V to 7V
SWN.................................................................................. -1V to 20V
GH......................................................................... -0.3V to BST+0.3V
GH-SWN ....................................................................................... 7V
All other pins ........................................................-0.3V to VCC+0.3V
Peak Output Current < 10us
GH,GL ........................................................................................... 2A
Storage Temperature .............................................. -65°C to 150°C
Power Dissipation ....................................................................... 1W
Lead Temperature (Soldering, 10 sec) ................................... 300°C
ESD Rating .......................................................................... 2kV HBM
Thermal Resistance ........................................................... 41.9°C/W
BST ............................................................................................. 27V
BST-SWN ......................................................................... -0.3V to 7V
SWN.................................................................................. -1V to 20V
GH......................................................................... -0.3V to BST+0.3V
GH-SWN ....................................................................................... 7V
All other pins ........................................................-0.3V to VCC+0.3V
Peak Output Current < 10us
GH,GL ........................................................................................... 2A
Storage Temperature .............................................. -65°C to 150°C
Power Dissipation ....................................................................... 1W
Lead Temperature (Soldering, 10 sec) ................................... 300°C
ESD Rating .......................................................................... 2kV HBM
Thermal Resistance ........................................................... 41.9°C/W
SP6137 Features
2.5V to 20V Step Down Achieved Using Dual Input
Small 10-Pin MSOP Package
2A to 15A Ouput Capability
Highly Integrated Design, Minimal Components
UVLO Detects Both VCC and VIN
Short Circuit Protection with Auto-Restart
On-Board 1.5Ω sink (2Ω source) NFET Drivers
Programmable Soft Start
Fast Transient Response
High Efficiency: Greater than 94% Possible
A Synchronous Start-Up into a Pre-Charged Output
Small 10-Pin MSOP Package
2A to 15A Ouput Capability
Highly Integrated Design, Minimal Components
UVLO Detects Both VCC and VIN
Short Circuit Protection with Auto-Restart
On-Board 1.5Ω sink (2Ω source) NFET Drivers
Programmable Soft Start
Fast Transient Response
High Efficiency: Greater than 94% Possible
A Synchronous Start-Up into a Pre-Charged Output
SP6137 Typical Application
12V DPA
Communications Systems
Graphics Cards
Communications Systems
Graphics Cards

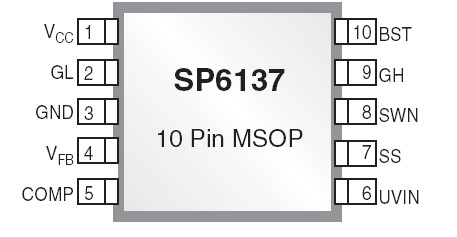

SP6137 Connection Diagram
SP6137
