SP6138

Features: 5V to 24V Input step down converter Up to 3A output in a small form factor Highly integrated design, minimal components UVLO Detects Both VCC and VIN Overcurrent circuit protection with auto-restart Power Good Output, ENABLE Input Maximum Controllable Duty Cycle Ratio up to 92% Wide BW ...

product image

SP6138 Picture
See larger image
SeekIC No. : 004500543 Detail

SP6138: Features: 5V to 24V Input step down converter Up to 3A output in a small form factor Highly integrated design, minimal components UVLO Detects Both VCC and VIN Overcurrent circuit protection with a...

SP6138 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SP6138
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5V to 24V Input step down converter
Up to 3A output in a small form factor
Highly integrated design, minimal components
UVLO Detects Both VCC and VIN
Overcurrent circuit protection with auto-restart
Power Good Output, ENABLE Input
Maximum Controllable Duty Cycle Ratio up to 92%
Wide BW amp allows Type II or III compensation
Programmable Soft Start
Fast Transient Response
Available in 6-Pin QFN package
External Driver Enable/Disable
U.S. Patent #6,922,04


Pinout

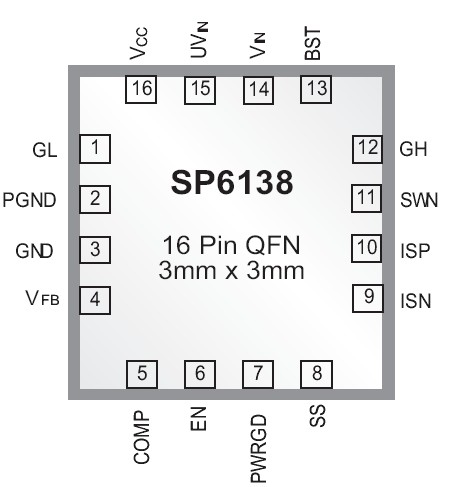

Connection Diagram


Specifications

VCC ................................................................................................6V
VIN ............................................................................................24.5V
BST ..............................................................................................30V
BST-SWN .......................................................................................7V
SWN .................................................................................-2V to 24V
GH .........................................................................-0.3V to BST+0.3V
GH-SWN ........................................................................................6V
All other pins ........................................................-0.3V to VCC+0.3V
Peak Output Current < 10µ
GH,GL ............................................................................................2A
Storage Temperature ................................................-65°C to 150°C
Power Dissipation .......................................................................... W
ESD Rating ...........................................................................2kV HBM
Thermal Resistance.............................................................41.9°C/W


Description

The SP6 38 is a synchronous step-down switching regulator controller optimized for small footprint. The part is designed to be especially attractive for single supply step down con-version from 5V to 24V. The SP6 38 is designed to drive a pair of external NFETs using a fixed 2.5 MHz frequency, PWM voltage mode architecture. Protection features include UVLO, thermal shutdown, output short circuit protection, and overcurrent protection with auto restart. The device also features a PWRGD output and an enable input. The SP6 38 is available in a space saving 6-pin QFN and offers excellent thermal performance.
