SP6831

These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.
V_IN.........................................................-0.3V to +5.6V
V_OUT......................................................-5.6V to +0.3V
I_OUT......................................................................50mA
Storage Temperature.......................-65to +150
Lead Temperature (Soldering)..........................300
Power Dissipation Per Package
6-pin SOT (derate 4.35mW/above +70).........400mW

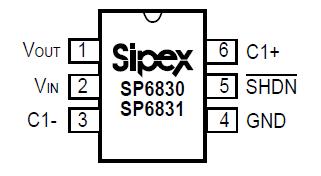

The SP6830/6831 devices are CMOS Charge Pump Voltage Inverters that can be implemented into designs which require a negative voltage from a battery voltage source as low as +1.15V or a power supply rail voltage as high as +5.3V. The SP6830/6831 devices are ideal for both battery-powered and board level voltage conversion applications with a typical operating current of 70A for the SP6830 and 200A for the SP6831. These devices combine an ultra-low shutdown current of <1A with high efficiency (>95% over most of its load-current range) which are ideal for designs using batteries such as cell phones, PDAs, medical instruments, and other portable equipment. The SP6830/6831 devices are available in a space-saving 6-pin SOT23-6 Package.
