Product Details

Description



Features:

99.9% Voltage Conversion Efficiency
+1.15V to +5.3V Input Voltage Range
+1.15 VIN Guaranteed Start-up
Inverts Input Supply Voltage
700mA Quiescent Current
25mA Output Current
500kHz Operating Frequency
Ideal for +3.6V Lithium Ion Battery Applications
Reverse Battery Protection
5-pin SOT23 Package
19W Output Resistance
 0.1 or 0.33 mF Capacitors

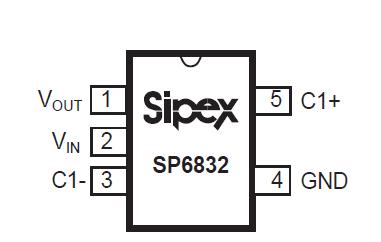

Pinout

Connection Diagram


Specifications

These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.
VIN.....................................................................................-0.3V to +5.6V
VOUT...................................................................................-5.6V to +0.3V
VOUT Short Circuit to GND.................................................Indefinite
IOUT...................................................................................................50mA
Storage Temperature.....................................................-65°C to +150°C
Power Dissipation per Package
5-pin SOT (derate 4.35mW/ above +70).............................400mW
Lead Temperature (Soldering)....................................................300
ESD Rating...............................................2kV Human Body Model


Description

The SP6832 device is a CMOS Charge Pump Voltage Inverter that can be implemented in designs requiring a negative voltage from a positive source as low as 1.15V. The SP6832 device is ideal for both battery-powered and board level voltage conversion applications with a typical operating current of 700mA at a 5V supply. The SP6832 can output 25mA with a voltage drop of 500mV. These devices combine a low quiescent current with high efficiency of 85-90% over most of its load range. Applications include cell phones, PDAs, medical instruments and other portable equipment. The SP6832 is available in a space-saving 5-pin SOT23 Package.
