Part Number: SP707



MFG: SMD

Package Cooled: SIPEX

D/C: 04+

Description: The SP705-708/813L/813M series is a family of microprocessor (mP) supervisory circuits that integrate ...


Urgent Purchase

SP707 General Description


The SP705-708/813L/813M series is a family of microprocessor (mP) supervisory circuits that integrate myriad components involved in discrete solutions which monitor power-supply and battery in mP and digital systems. The SP705-708/813L/813M series will significantly improve system reliability and operational efficiency when compared to solutions obtained with discrete components. The features of the SP705-708/813L/813M series include a watchdog timer, a mP reset, a Power Fail Comparator, and a manual-reset input. The SP705-708/813L/813M series is ideal for applications in automotive systems, computers, controllers, and intelligent instruments. The SP705-708/813L/813M series is an ideal solution for systems in which critical monitoring of the power supply to the mP and related digital components is demanded.

SP707 Maximum Ratings

Vcc ...................................................... -0.3V to +6.0V
All Other Inputs (Note 1) ............. -0.3V to (Vcc+0.3V)
Input Current:
Vcc .................................................................... 20mA
GND .................................................................. 20mA
Output Current (all outputs) ............................ 20mA
ESD Rating........................................................... 4KV
Continuous Power Dissipation
Plastic DIP (derate 9.09mW/°C above +70°C)727mW
SO (derate 5.88mW/°C above +70°C) .......... 471mW
Mini SO (derate 4.10mW/°C above +70°C) ....330mW
Storage Temperature Range ........... -65°C to +160°C
Lead Temperature (soldering, 10s) ............... +300°C

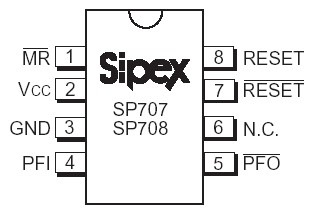

SP707 Connection Diagram

SP707 Connection Diagram

SP707 datasheet

SP707
PDF/DataSheet Download
