Purchase SP8605, In-stock SP8605 From SeekIC.
Part Number: SP8605
Description: The SP86XX Series are complete, unipolar, 12-bit sampling A/D converters using state-of-the-art CMOS s...
- Table of contents:
SP8605
-
Suppliers
DataSheet
General Description
SP8605 General Description
The SP86XX Series are complete, unipolar, 12-bit sampling A/D converters using state-of-the-art CMOS structures. They contain a complete 12-bit successive approximation A/D converter with internal sample/hold, reference, clock, digital interface for microprocessor control, and three-state output drivers. Power dissipation is only 90mW. AC and DC performance are completely specified. Sampling/conversion rates of 3ms, 5ms and 10ms are offered.
SP8605 Maximum Ratings
VS to Digital Common ............................................................... +7V
Pin 26 (VSO) to Pin 27 (VSA) .................................................. ±0.3V
Analog Common to Digital Common ...................................... ±0.3V
Control Inputs to Digital Common ...................... 0.3 to VS + 0.3 V
Analog Input Voltage .................................................. 3.0/+16.5V
Maximum Junction Temperature ........................................... 160°C
Internal Power Dissipation ................................................. 750mW
Lead Temperature (soldering, 10s) .................................... +300°C
Thermal Resistance. ØJA:
Plastic DIP ......................................................................... 50°C/W
SOIC ................................................................................ 100°C/W
Pin 26 (VSO) to Pin 27 (VSA) .................................................. ±0.3V
Analog Common to Digital Common ...................................... ±0.3V
Control Inputs to Digital Common ...................... 0.3 to VS + 0.3 V
Analog Input Voltage .................................................. 3.0/+16.5V
Maximum Junction Temperature ........................................... 160°C
Internal Power Dissipation ................................................. 750mW
Lead Temperature (soldering, 10s) .................................... +300°C
Thermal Resistance. ØJA:
Plastic DIP ......................................................................... 50°C/W
SOIC ................................................................................ 100°C/W

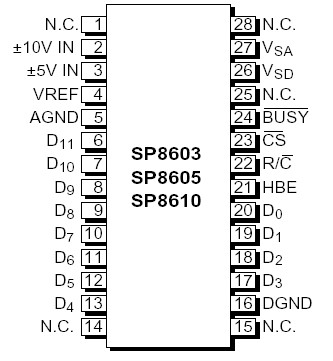

SP8605 Connection Diagram
SP8605
PDF/DataSheet Download
- Datasheet: SP8605
- File Size: 165881 KB
- Manufacturer: SIPEX [Sipex Corporation]
- Click here to Download
