Features: • Very High Operating Speed
• Operation down to DC with Square Wave Input
• Silicon Technology for Low Phase Noise
(Typically better than 2140dBc/Hz at 1KHz)
• 5V Single Supply Operation
• Low Power Dissipation: 360mW (Typ.)
• Surface Mount Plastic Package• Very High Operating Speed
• Operation down to DC with Square Wave Input
• Silicon Technology for Low Phase Noise
(Typically better than 2140dBc/Hz at 1KHz)
• 5V Single Supply Operation
• Low Power Dissipation: 360mW (Typ.)

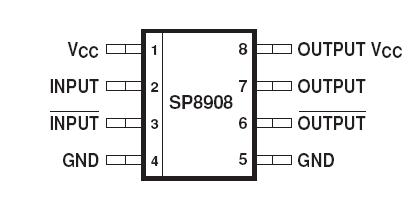

• Surface Mount Plastic PackagePinout
SpecificationsSupply voltage, VCC................................................6·5V
Storage temperature..........................265°C to 1150°C
Maximum junction temperature..........................1150°C
Prescaler input voltage......................................2·5Vp-p
Operating temperatureKG..........240°C to 185°C TCASE
Supply voltage, VCC................................................6·5V
Storage temperature..........................265°C to 1150°C
Maximum junction temperature..........................1150°C
Prescaler input voltage......................................2·5Vp-p
Operating temperatureKG..........240°C to 185°C TCASE
DescriptionThe SP8908(MP) is one of a range of very high speed low power prescalers for professional applications. The dividing elements are static D type flip flops and therefore allow operation down to DC if the drive signal is a pulse waveform with fast risetime. The output stage has a differential current output and provides a direct drive into a 50 ohm load.
The SP8908(MP) is one of a range of very high speed low power prescalers for professional applications. The dividing elements are static D type flip flops and therefore allow operation down to DC if the drive signal is a pulse waveform with fast risetime. The output stage has a differential current output and provides a direct drive into a 50 ohm load.
The SP8908(MP) has some absolute maximum ratings.When parameter is supply voltage,Vcc,the rating is 6.5V.When parameter is storage temperature range,the rating is -65 to +150.When parameter is Max. junction temperature,the rating is +150.When parameter is prescaler input voltage,the rating is 2.5V p-p.When parameter is operating temperature,the rating is KG240 to 185 TCASE.
