Product Details

Description



Pinout

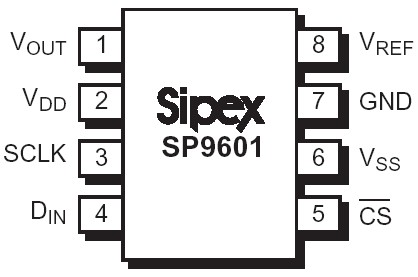

Connection Diagram


Specifications

VDD - GND ..................................................................... -0.3V,+6.0V
VSS - GND .................................................................... +0.3V, -6.0V
VDD - VSS.................................................................... -0.3V, +12.0V
VREF ................................................................................... VSS, VDD
DIN .................................................................................... VSS, VDD
Power Dissipation
Plastic DIP .......................................................................... 375mW
(derate 7mW/°C above +70°C)
Plastic LCC ......................................................................... 375mW
(derate 7mW/°C above +70°C)
Small Outline ...................................................................... 375mW
(derate 7mW/°C above +70°C)


Description

The SP9601 is a very low power 12-Bit Digital-to-Analog Converter. It features ±4.5V output swings when using ±5 volt supplies. The converter uses a standard 3wire serial interface compatible with SPI™, QSPI™ and Microwire™. The output settling-time is specified at 30ms. The SP9601 is available in 8pin 0.15" SOIC and DIP packages, specified over commercial and industrial temperature ranges.
