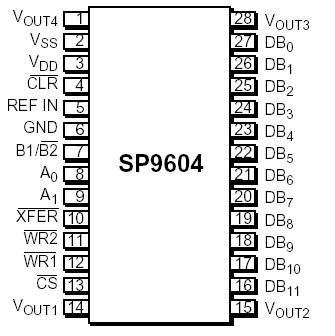

Connection Diagram


Specifications

VDD - GND ..................................................................... -0.3V,+6.0V
VSS - GND .................................................................... +0.3V, -6.0V
VDD - VSS ................................................................... -0.3V, +12.0V
VREF ................................................................................... VSS, VDD
DIN .................................................................................... VSS, VDD
Power Dissipation
Plastic DIP .......................................................................... 375mW
(derate 7mW/°C above +70°C)
Small Outline ...................................................................... 375mW
(derate 7mW/°C above +70°C)


Description

The SP9604 is a very low power replacement for the popular SP9345, Quad 12-Bit Digital-to- Analog Converter. It features ±4.5V output swings when using ±5 volt supplies. The converter is double-buffered for easy microprocessor interface. Each 12-bit DAC is independently addressable and all DACs may be simultaneously updated using a single transfer command. The output settling-time is specified at 30ms. The SP9604 is available in 28pin SOIC and plastic DIP packages, specified over commercial temperature range.
