SPB-5780-1590G

Features: `1-Fiber Bi-Directional SFP Optical Transceiver`Simplex SC Connector: SPB-5780-1590G`Simplex LC Connector: SPB-5780L-1590G`1590 nm DFB LD Transmitter`1510 nm Receiver`Distance Up to 80 km`AC/AC Coupling according to MSA`Single +3.3 V Power Supply`RoHS Compliant`0 to 70 Operating : SPB-57...

product image

SPB-5780-1590G Picture
See larger image
SeekIC No. : 004500905 Detail

SPB-5780-1590G: Features: `1-Fiber Bi-Directional SFP Optical Transceiver`Simplex SC Connector: SPB-5780-1590G`Simplex LC Connector: SPB-5780L-1590G`1590 nm DFB LD Transmitter`1510 nm Receiver`Distance Up to 80 km`...

SPB-5780-1590G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPB-5780-1590G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`1-Fiber Bi-Directional SFP Optical Transceiver
`Simplex SC Connector: SPB-5780-1590G
`Simplex LC Connector: SPB-5780L-1590G
`1590 nm DFB LD Transmitter
`1510 nm Receiver
`Distance Up to 80 km
`AC/AC Coupling according to MSA
`Single +3.3 V Power Supply
`RoHS Compliant
`0 to 70 Operating : SPB-5780-1590G
` -10 to 85 Operating : SPB-5780B-1590G
`Class 1 Laser International Safety Standard IEC 60825 Compliant


Application

·SONET/SDH Equipment Interconnect
·Fibre Channel Links

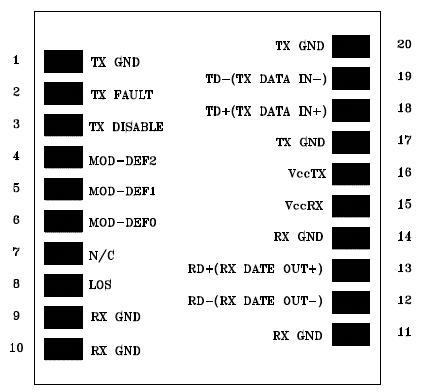

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Notes
Storage Temperature
Tstg
-40
85
Operating Case Temperature
Topr

0
-10
70
85
SPB-5780-1590G
SPB-5780B-1590G
Power Supply Voltage
Vcc
0
3.6
V
Input Voltage
-
GND
Vcc
V
Output Current
Iout
0
30
mA



Description

The SPB-5780-1590G series is small form factor pluggable module for OC-12/STM-4 SONET/SDH and Fibre Channel single fiber communications by using 1590 nm transmitter and 1510 nm receiver. SPB-5780-1590G is with the SFP 20-pin connector to
allow hot plug capability. The transmitter section uses a multiple quantum well 1590 nm laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1510 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
