SPP21N10

MOSFET N-CH 100V 21A

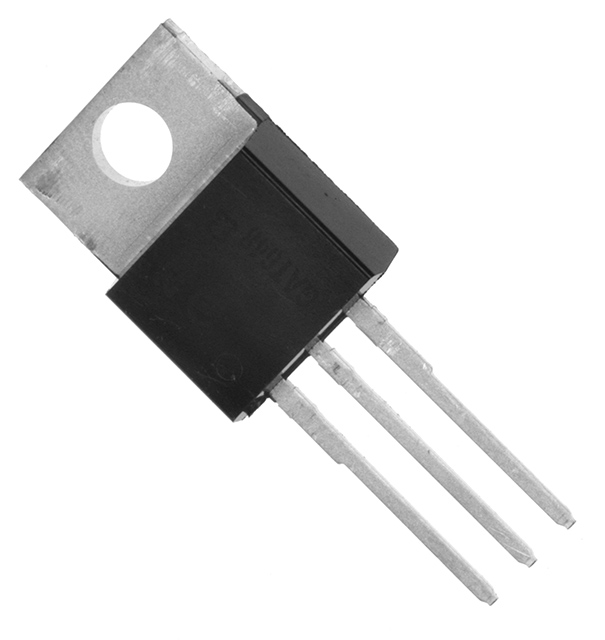

product image

SPP21N10 Picture
See larger image
SeekIC No. : 00163649 Detail

SPP21N10: MOSFET N-CH 100V 21A

SPP21N10 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPP21N10
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 100 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 21 A
Resistance Drain-Source RDS (on) : 80 m Ohms Configuration : Single
Maximum Operating Temperature : + 175 C Mounting Style : Through Hole
Package / Case : TO-220AB Packaging : Tube

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Maximum Operating Temperature : + 175 C
Drain-Source Breakdown Voltage : 100 V
Mounting Style : Through Hole
Packaging : Tube
Package / Case : TO-220AB
Continuous Drain Current : 21 A
Resistance Drain-Source RDS (on) : 80 m Ohms


Features:

· N-Channel
· Enhancement mode
·175°C operating temperature
· Avalanche rated
· dv/dt rated


Specifications

Parameter Symbol Value Unit
Continuous drain current
TC = 25 °C
TC = 100 °C		 ID 21
15.0		 A
Pulsed drain current
TC = 25 °C		 ID puls 84
Avalanche energy, single pulse
ID =21 A, VDD = 25 V, RGS = 25		 EAS 130 mJ
Reverse diode dv/dt
IS =21 A, VDS = 80 V, di/dt = 200 A/s,
Tjmax = 175 °C		 dv/dt 6 kV/s
Gate source voltage VGS ±20 V
Power dissipation
TC = 25 °C		 Ptot 90 W
Operating and storage temperature Tj , Tstg -55... +175 °C
IEC climatic category; DIN IEC 68-1 55/175/56



Parameters:

Technical/Catalog InformationSPP21N10
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25° C21A
Rds On (Max) @ Id, Vgs80 mOhm @ 15A, 10V
Input Capacitance (Ciss) @ Vds 865pF @ 25V
Power - Max90W
PackagingTube
Gate Charge (Qg) @ Vgs38.4nC @ 10V
Package / CaseTO-220AB
FET FeatureStandard
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SPP21N10
SPP21N10
SPP21N10IN ND
SPP21N10INND
SPP21N10IN
