Product Details

Description

Features:

` Hot-Pluggable SFP Footprint LC Optical Transceiver
` Small Form-Factor Pluggable (SFP) MSA compatible
` Compliant with SONET OC-3 LR-1/ SDH STM-1 (L-1.1)
` AC/AC Coupling according to MSA
` Distance up to 50 km
` Single +3.3 V Power Supply
` RoHS Compliant
` -10 to 85 Operation: SPS-3150G
` -40 to 85 Operation: SPS-3150AG
` Class 1 Laser International Safety Standard IEC-60825 Compliant

Application

· ATM Switches and Routers
· SONET / SDH Switch Infrastructure
· Fast Ethernet Applications

Pinout

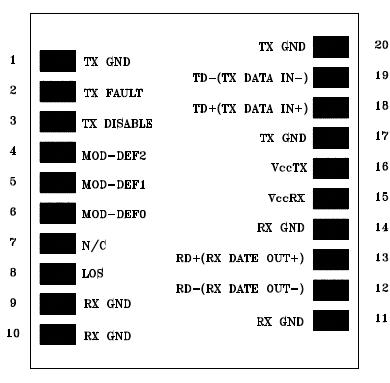

Connection Diagram

Specifications

Parameter	Symbol	Min	Max	Units	Notes
Storage Temperature	T_stg	-40	85	oC
Operating Case Temperature	T_opr	-10 -40	85 85	oC	SPS-3150G SPS-3150AG
Power Supply Voltage	V_cc	-0.5	3.6	V

Description

The SPS-3150G series single mode transceiver is small form factor pluggable module for bi-directional serial optical data communications such as SONET OC-3 / SDH STM-1 and Fast Ethernet. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1310 nm. The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
