General Description
SPT1018 General Description
The SPT1018 is a monolithic 8-bit digital-to-analog convertercapable of accepting video data at a 165 or 275 MWPS rate.Complete with video controls(Sync, Blank, Reference White[Force High],Bright),the SPT1018 directly drives doubly-terminated 50 or 75 ohm loads to standard composite videolevels. The standard set-up level is 7.5 IRE. The SPT1018 ispin-compatible with the HDAC10180 and the TDC1018, withimproved performance. The SPT1018 contains data andcontrol input registers, video control logic, reference buffer,and current switches.
The SPT1018 is available in a 24-lead PDIP package in thendustrial temperature range.Contact the factory for militaryemperature and/883 versions.
SPT1018 Maximum Ratings
Supply Voltages
VEE (measured to VCC) ............................... -7.0 to 0.5 V
Input Voltages
CONV, Data, and Controls ..........................VEE to 0.5 V
(measured to VCC)
Ref+ (measured to VCC) .............................VEE to 0.5 V
Ref- (measured to VCC) ..............................VEE to 0.5 V
Temperature
Operating,ambient .....................................-25 to +85 °C
junction ......................................................+175 °C
Lead,Soldering (10 seconds) ......................+300 °C
Storage .......................................................-60 to +150 °C
VEE (measured to VCC) ............................... -7.0 to 0.5 V
Input Voltages
CONV, Data, and Controls ..........................VEE to 0.5 V
(measured to VCC)
Ref+ (measured to VCC) .............................VEE to 0.5 V
Ref- (measured to VCC) ..............................VEE to 0.5 V
Temperature
Operating,ambient .....................................-25 to +85 °C
junction ......................................................+175 °C
Lead,Soldering (10 seconds) ......................+300 °C
Storage .......................................................-60 to +150 °C
SPT1018 Features
• 275 MWPS Conversion Rate - Version A
• 165 MWPS Conversion Rate - Version B
• Compatible with TDC1018 and HDAC10180with Improved Performance
• RS-343-A Compatible
• Complete Video Controls: Sync, Blank, Brightand Reference White (Force High)
• 10KH, 100K ECL Compatible
• Single Power Supply
• Registered Data and Video Controls
• Differential Current Outputs
• ESD Protected Data and Control Inputs
SPT1018 Typical Application
• High Resolution Color or Monochrome RasterGraphics Displays
• Medical Electronics: CAT, PET, MR Imaging Displays
• CAD/CAE Workstations
• Solids Modeling
• General Purpose High-Speed D/A Conversion
• Digital Synthesizers
• Automated Test Equipment
• Digital Transmitters/Modulators

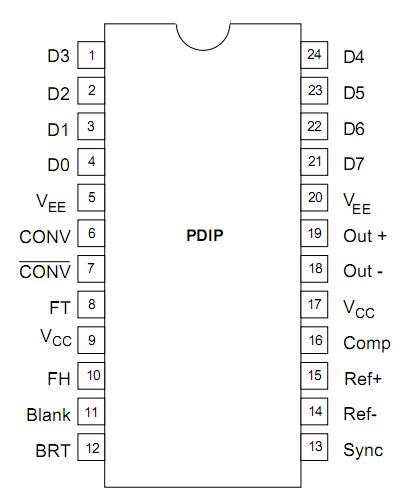

SPT1018 Connection Diagram
