Part Number: SPT5140
Description: The SPT5140 is a monolithic 8-bit digital-to-analog converter capable of accepting video data at 400 M...
- Table of contents:
SPT5140
-
Suppliers
DataSheet
General Description
SPT5140 General Description
The SPT5140 is a monolithic 8-bit digital-to-analog converter capable of accepting video data at 400 MWPS. Complete with video controls - Sync, Blank, Reference White (Force High), Bright - the SPT5140 directly drives doubly-terminated 50 or 75 ohm loads to standard composite video levels. Standard set-up level is 7.5 IRE. The SPT5140 includes an internal precision bandgap reference which can drive two other SPT5140s in an RGB graphics system.
The SPT5140 is available in a 24-lead PDIP package in the industrial temperature range of 25 °C to +85 °C. Contact the factory for military temperature and /883 versions.
SPT5140 Maximum Ratings
Supply Voltages
VEE (measured to VCC) ......................... 7.0 to 0.5 V
Input Voltages
CONV, Data, and Controls ...................... VEE to 0.5 V
(measured to VCC)
Ref+ (measured to VCC) ......................... VEE to 0.5 V
Ref (measured to VCC) ......................... VEE to 0.5 V
Temperature
Operating, ambient ............................ 25 to +85 °C
junction ...................................................... + 175 °C
Lead, soldering (10 seconds) ..................... + 300 °C
Storage ........................................... 60 to + 150 °C
Note 1: Operation at any Absolute Maximum Rating is not implied. See Electrical Specifications for proper nominal applied conditions in typical applications.
SPT5140 Features
• 400 MWPS nominal conversion rate
• RS-343-A compatible
• Complete video controls: Sync, Blank, Bright and Reference White (Force High)
• 10 KH, 100K ECL compatible
• Single power supply
• Registered data and video controls
• Differential current outputs
• Stable on-chip bandgap reference
• 50 and 75 ohm output drive
• ESD-protected data and control inputs
• RS-343-A compatible
• Complete video controls: Sync, Blank, Bright and Reference White (Force High)
• 10 KH, 100K ECL compatible
• Single power supply
• Registered data and video controls
• Differential current outputs
• Stable on-chip bandgap reference
• 50 and 75 ohm output drive
• ESD-protected data and control inputs
SPT5140 Typical Application
• Raster graphics
• High-resolution color or monochrome displays to 2k x 2k pixels
• Medical electronics: CAT, PET, MR imaging displays
• CAD/CAE workstations
• Solids modeling
• General-purpose high-speed D/A conversion
• Digital synthesizers
• Automated test equipment
• Digital transmitters/modulators
• High-resolution color or monochrome displays to 2k x 2k pixels
• Medical electronics: CAT, PET, MR imaging displays
• CAD/CAE workstations
• Solids modeling
• General-purpose high-speed D/A conversion
• Digital synthesizers
• Automated test equipment
• Digital transmitters/modulators

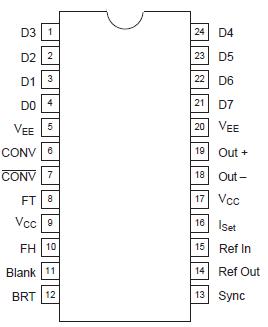

SPT5140 Connection Diagram
SPT5140
