SPT5230

Features: • 10-Bit Triple Video Digital-to-Analog Converter• Output Full-Scale Voltage 0.5 to 2.0 Vp-p• 36 MWPS Operation (typ)• Low Power: 280 mW (1 Vp-p Output)• 5 V Monolithic CMOS• 52-pin QFP Package (10mm x 10mm, 0.65 mm pitch)Application• Desktop Vid...

product image

SPT5230 Picture
See larger image
SeekIC No. : 004501398 Detail

SPT5230: Features: • 10-Bit Triple Video Digital-to-Analog Converter• Output Full-Scale Voltage 0.5 to 2.0 Vp-p• 36 MWPS Operation (typ)• Low Power: 280 mW (1 Vp-p Output)• 5 V ...

SPT5230 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPT5230
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 10-Bit Triple Video Digital-to-Analog Converter
• Output Full-Scale Voltage 0.5 to 2.0 Vp-p
• 36 MWPS Operation (typ)
• Low Power: 280 mW (1 Vp-p Output)
• 5 V Monolithic CMOS
• 52-pin QFP Package (10mm x 10mm, 0.65 mm pitch)




Application

• Desktop Video Processing
• CCIR-601 Video Signal Processing
• RGB Color Monitors
• Image Processing
• Direct Digital Synthesis




Pinout

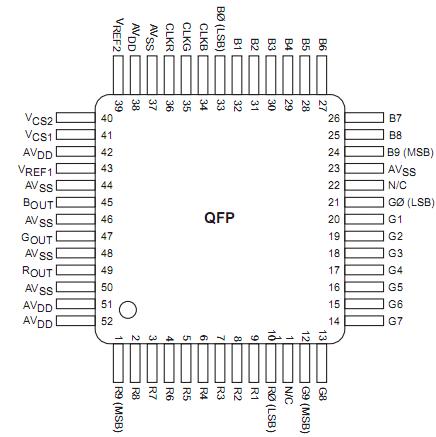

Connection Diagram


Specifications

Supply Voltages
AVDD (measured to AVSS) ........................... 0.3 to 7.0 V
Input Voltage
Clock and Data ......................................... AVSS to  AVDD
Output Current
IOUT ........................................................................... 0 to 14 mA
Temperature
Operating, ambient ........................................ 0 to +70 °C
Storage ................................................... 55 to + 125 °C



Description

The SPT5230 is a 10-bit, 36 MWPS triple video digital-to-analog converter specifically designed for high performance,high resolution color graphics monitor applications and video processing applications. A single external resistor controls the full-scale output current. The differential linearity errors of the DACs are guaranteed to be a maximum of ±1.0 LSB over the full temperature range. The device is available in a 52-lead QFP package over the commercial temperature range.
