SPT5400

• Full 13-bit performance without external adjustments
• Eight DACs in one package
• Buffered voltage outputs
• Guaranteed monotonic to 13 bits
• Unipolar or bipolar output swing to ±4.5 V
• Output settling time of 7 µs to ±1/2 LSB
• Double-buffered digital inputs

• Automatic test equipment
• Flat-panel displays
• Arbitrary function generators
• Instrumentation
• Process control

The SPT5400 has eight 13-bit voltage output digital-to-analog converters on one chip. It operates from  ±5 V power supplies and has maximum voltage output swings of up to ±4.5 V without the addition of external compo-nents. Novel circuit topology allows for a guaranteed monotonicity of 13 bits without the need for additional circuitry. The SPT5400 has four separate reference volt-age inputs, one for each pair of DACs. Four separate
analog ground pins allow for separate offset voltages for each DAC pair. Each DAC can be asynchronously loaded through a common 13-bit bus into a double-buffered set of latches. All logic inputs are TTL/CMOS compatible.

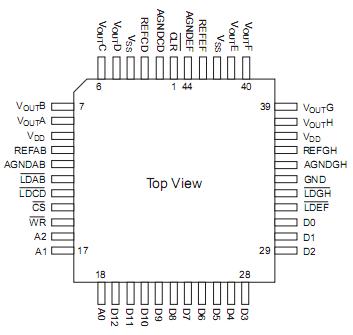

The SPT5400 is available in a 44-lead PLCC package over the commercial temperature range of 0  °C to +70 °C.
