SPT5420

Features:

• 13-bit resolution
• Pin compatible with AD7839
• Eight DACs in one package
• Buffered voltage outputs
• Wide output voltage swing V_DD2.5 V to V_SS+2.5 V
• 15 µs settling time to ±0.5 LSB
• Double-buffered digital inputs
• Microprocessor and TTL/CMOS compatible

Application

• Automatic test equipment
• Instrumentation
• Process controla

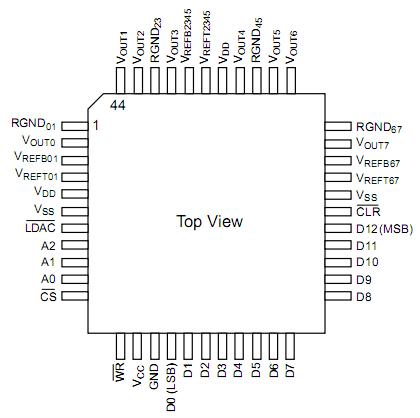

Pinout




Specifications

Supply Voltages
V_CC ........................................................................ +6 V
V_DD ...................................................................... +15 V
V_SS ...................................................................... 15 V
Input Voltages
V_REFT .................................... V_SS 0.3 V to V_DD +0.3 V
V_REFB ................................... V_DD +0.3 V to V_SS 0.3 V
Digital inputs ....................................0.3 V to V_CC +0.3 V
Temperature
Operating Temperature .......................... 40 to +85 °C
Storage ................................................ 65 to +150 °C


Description

The SPT5420 contains eight 13-bit digital-to-analog CMOS converters designed primarily for automatic test equipment applications. It uses novel circuit topology to convert the 13-bit digital inputs into output voltages which are proportionate to the applied reference voltages. Each
DAC's full-scale output voltage and output voltage offset are adjustable with analog inputs (RGND, V_REFB, V_REFT).

The SPT5420 operates over an industrial temperature range of 40 °C to +85 °C and is available in a 10  x 10 mm,44-lead metric quad flat pack (MQFP) plastic package.
