Purchase SPT5510, In-stock SPT5510 From SeekIC.
Part Number: SPT5510
Description: The SPT5510 is a 16-bit,200 MWPS digital-to-analog converter designed for high-resolution waveform syn...
- Table of contents:
SPT5510
-
Suppliers
DataSheet
General Description
SPT5510 General Description
The SPT5510 is a 16-bit,200 MWPS digital-to-analog converter designed for high-resolution waveform synthesis for test andfeatures true 16-bit linearity,with differential non-linearity of typically ±0.6 LSB and integral non-linearity of ±0.75 LSB.has a very high-speed update rate of up to 200 MHz and isECL compatible. It has an ultrafast settling time of 25 ns to 0.01% and 35 ns to 0.0008%.
The SPT5510 operates over an industrial temperature range of 40 °C to +85 °C and is available in a 10 x 10 mm,44-lead metric quad flat pack (MQFP) plastic package.
SPT5510 Maximum Ratings
Supply Voltages
Negative supply voltage (VEE) ................................. 7 V
A/D ground voltage differential ................................ 0.5 V
Input Voltages
Digital input voltage (D15D0, Clock)... ........... 2.5 to 0 V
Ref amp input voltage range .......................... 2.5 to 0 V
Reference input voltage range (Ref In) ...... VEE to 2.5 V
Output Currents
Bandgap reference output current .....................±500 µA
Ref amplifier output current ................................ ±2.5 mA
Temperature
Operating temperature ............................... 40 to +85 °C
Junction temperature .......................................... +150 °C
Lead, soldering (10 seconds) ............................. +250 °C
Storage .................................................... 65 to +150 °C
Negative supply voltage (VEE) ................................. 7 V
A/D ground voltage differential ................................ 0.5 V
Input Voltages
Digital input voltage (D15D0, Clock)... ........... 2.5 to 0 V
Ref amp input voltage range .......................... 2.5 to 0 V
Reference input voltage range (Ref In) ...... VEE to 2.5 V
Output Currents
Bandgap reference output current .....................±500 µA
Ref amplifier output current ................................ ±2.5 mA
Temperature
Operating temperature ............................... 40 to +85 °C
Junction temperature .......................................... +150 °C
Lead, soldering (10 seconds) ............................. +250 °C
Storage .................................................... 65 to +150 °C
SPT5510 Features
• 16-Bit, 200 MWPS digital-to-analog converter
• Differential linearity of ±0.6 LSB (typical)
• Integral linearity of ±0.75 LSB (typical)
• Fast settling time: 35 ns to 0.0008%; 25 ns to 0.01%
• Low glitch energy
• On-chip voltage reference
• ECL compatibility
SPT5510 Typical Application
• High-precision arbitrary waveform generation
• Test and measurement instrumentation
• Digital waveform synthesis
• Microwave and satellite modems
• Disk drive test equipment
• Industrial process control
• Military applications

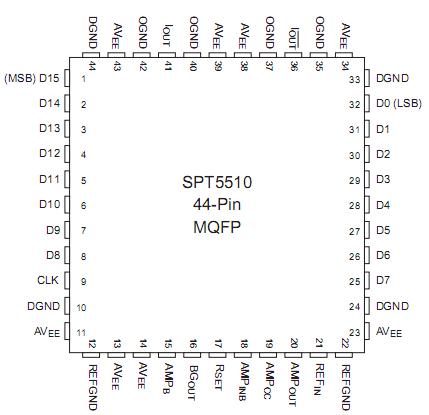

SPT5510 Connection Diagram
SPT5510
PDF/DataSheet Download
- Datasheet: SPT5510
- File Size: 63273 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
