Features:

• 1:2 demuxed ECL-compatible outputs
• 1.0 GSPS conversion rate
• Wide input bandwidth: 1.4 GHz
• Low input capacitance: 8 pF
• Metastable errors reduced to 1 LSB
• Monolithic construction
• Binary/Two's complement output




Application

• Radar, EW, ECM
• Direct RF down-conversion
• Microwave modems
• Industrial ultrasound
• Transient capture
• Test and measurement




Pinout

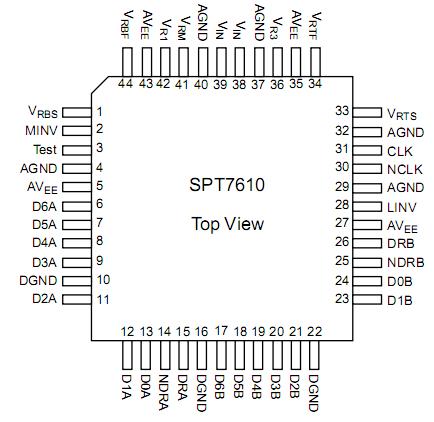

Connection Diagram


Specifications

Supply Voltages
Negative Supply Voltage (AVEE TO GND) . 7.0 to +0.5 V
Ground Voltage Differential ......................0.5 to +0.5 V
Input Voltage
Analog Input Voltage ................................+0.5 V to AVEE
Reference Input Voltage ...........................+0.5 V to AVEE
Digital Input Voltage ..................................+0.5 V to AVEE
Reference Current  VRT to VRB ...................+20 mA
Output
Digital Output Current ................................... 0 to 25 mA
Temperature
Operating Temperature, Ambient ............... 40 to +85 °C
Lead Temperature, (soldering 10 seconds) ........+300 °C
Storage Temperature ............................... 65 to +150 °C


Description

The SPT7610 is a full parallel (flash)analog-to-digital con-verter capable of digitizing full-scale(0 to 1 V)inputs into six-bit digital words at an update rate of 1 GSPS. The ECL-compatible outputs are demultiplexed into two sepa-rate output banks, each with differential data-ready out-
puts to ease the task of data capture. The SPT7610's wide input bandwidth and low capacitance eliminate the need or external track-and-hold amplifiers for most applica-ions. A proprietary decoding scheme reduces metastable errors to the 1 LSB level. The SPT7610 operates from a single 5.2 V supply, with a nominal power dissipation of 2.75 W.

The SPT7610 is available in a 44L hermetic cerquad surface-mount package in the industrial temperature range (40 °C to +85 °C).
