SPT7721

• TTL/CMOS/PECL compatible
• High conversion rate: 250 MSPS
• Single +5 V power supply
• Very low power dissipation: 310 mW
• Power-down mode
• +3.0 V/+5.0 V (LVCMOS) digital output logiccompatibility
• Demuxed output ports

• RGB video processing
• Digital communications
• High-speed instrumentation
• Projection display systems

The SPT7721 is a high-speed, 8-bit analog-to-digital con-verter implemented in an advanced BiCMOS process. Anadvanced folding and interpolating architecture providesboth a high conversion rate and very low power dissipationof only 310 mW. The analog inputs can be operated ineither single-ended or differential input mode. A 2.5 V com-mon mode reference is provided on chip for the singleended input mode to minimize external components.

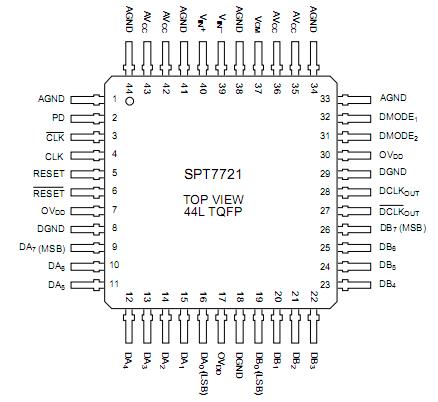

The SPT7721 digital outputs are demuxed (double-wide)with both dual-channel and single-channel selectable out-put modes. Demuxed mode supports either parallelaligned or interleaved data output. The output logic is both+3.0 V and +5.0 V compatible. The SPT7721 is available ina 44-lead TQFP surface mount package over the industrialtemperature range of 40 to +85 °C.
