Features: • 8-Bit, 1 kHz to 3.0 MSPS Analog-to-Digital Converter
• Monolithic CMOS
• Serial Output
• Internal Sample-and-Hold
• Analog Input Range: 0 to 2 V Nominal; 3.3 V Max
• Power Dissipation (Excluding Reference Ladder)45 mW at +5 V16 mW at +3 V
• Single Power Supply: +3 V to +5 V Range
• High ESD Protection: 3,000 V Minimum
Application• Handheld and Desktop Scanners
• DSP Interface Applications
• Portable Digital Radios
• Portable and Handheld Applications
• Automotive Applications
• Remote Sensing

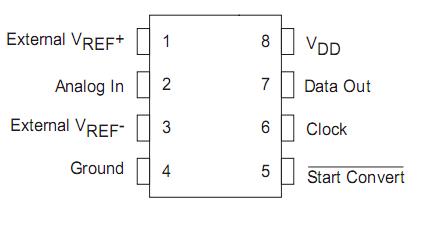

Pinout
SpecificationsSupply Voltages
VDD ...............................................................+6 V
Input Voltages
Analog Input .................................................-0.7 to +6 V
VREF+ ...........................................................-0.7 to +6 V
VREF- ............................................................-0.7 to +6 V
Clock and SC .................................................-0.7 to +6 V
Output
Data Out ........................................................10 mA
Temperature
Operating, ambient ........................................0 to 70 °C
junction ..........................................................+ 175 °C
Lead, Soldering (10 seconds) ........................+ 300 °C
Storage ..........................................................-65 to + 150 °C
DescriptionThe Fairchild 8-bit, 3.0 MSPS, serial analog-to-digital con-verter delivers excellent high speed conversion performance with low cost and low power. The serial port protocol iscompatible with the serial peripheral interface (SPI) orMICROWIRE™ industry standard, high-speed synchronous MPU interfaces. The large input bandwidth and fast transientresponse time of the SPT7730 allow for CCD applications operating up to 3.0 MSPS.
The device can operate with a power supply range from +3 V to +5 V with very low power dissipation.The small package size makes this part for handheld applications where board space is a premium.The SPT7730 is available in an 8-lead SOIC package over the commercial temperature range.Contact the factory for availability of die and industrial temperature range versions.
SPT7730 Data Sheet
