Part Number: SPT7734
Description: The SPT7734 is a 8-bit monolithic,low cost,ultralow power analog-to-digital converter capable of minim...
- Table of contents:
SPT7734
-
Suppliers
DataSheet
General Description
SPT7734 General Description
The SPT7734 is a 8-bit monolithic,low cost,ultralow power analog-to-digital converter capable of minimum word rates of 40 MSPS.The on-chip track-and-hold function assuresm very good dynamic performance without the need for external components.The input drive requirements aredue to the SPT7734's low input capacitance of only5 pF.
Power dissipation is extremely low at only 175 mW typical at 40 MSPS with a power supply of +5.0 V. The digital outputs are +3 V or +5 V, and are user selectable. The SPT7734 has incorporated proprietary circuit design and CMOS processing technologies to achieve its advanced performance. In-puts and outputs are TTL/CMOS compatible to interface with TTL/CMOS logic systems. Output data format is straight binary.
The SPT7734 is available in 28-lead SOIC and 32-lead small (7 mm square) TQFP packages over the commercial temperature range.
SPT7734 Maximum Ratings
Supply Voltages
AVDD..............................................+6 V
DVDD .............................................+6 V
Input Voltages
Analog Input ..................................-0.5 V to AVDD +0.5 V
VREF ...............................................0 to AVDD
CLK Input ........................................VDD
AVDD - DVDD....................................±100 mV
AGND - DGND ...................................±100 mV
Output
Digital Outputs .................................10 mA
Temperature
Operating Temperature .....................0 to +70 °C
Junction Temperature ........................+175 °C
Lead Temperature, (soldering 10 seconds) ....+300 °C
Storage Temperature .........................-65 to +150 °C
SPT7734 Features
• Monolithic 40 MSPS Converter
• 175 mW Power Dissipation
• On-Chip Track-and-Hold
• Single +5 V Power Supply
• TTL/CMOS Outputs
• 5 pF Input Capacitance
• Low Cost
• Tri-State Output Buffers
• High ESD Protection: 3,500 V Minimum
• Selectable +3 V or +5 V Logic I/O
SPT7734 Typical Application
• All High-Speed Applications Where Low Power Dissipation is Required
• Video Imaging
• Medical Imaging
• Radar Receivers
• IR Imaging
• Digital Communications

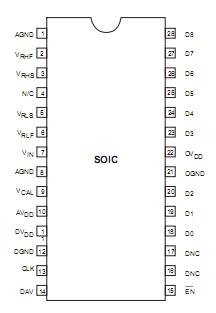

SPT7734 Connection Diagram
SPT7734
PDF/DataSheet Download
- Datasheet: SPT7734
- File Size: 88903 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
