SPT7935

Features: • 12-Bit, 20 MSPS Analog-to-Digital Converter• Monolithic CMOS• Internal Track-and-Hold• Low Input Capacitance: 1.4 pF• Low Power Dissipation: 79 mW• 2.8 3.6 V Power Supply Range• TTL-Compatible OutputsApplication• CCD Imaging Cameras and ...

product image

SPT7935 Picture
See larger image
SeekIC No. : 004501435 Detail

SPT7935: Features: • 12-Bit, 20 MSPS Analog-to-Digital Converter• Monolithic CMOS• Internal Track-and-Hold• Low Input Capacitance: 1.4 pF• Low Power Dissipation: 79 mW• 2....

SPT7935 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPT7935
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 12-Bit, 20 MSPS Analog-to-Digital Converter
• Monolithic CMOS
• Internal Track-and-Hold
• Low Input Capacitance: 1.4 pF
• Low Power Dissipation: 79 mW
• 2.8 3.6 V Power Supply Range
• TTL-Compatible Outputs




Application

• CCD Imaging Cameras and Sensors
• Medical Imaging
• RF Communications
• Document and Film Scanners
• Electro-Optics
• Transient Signal Analysis
• Handheld Equipment




Pinout

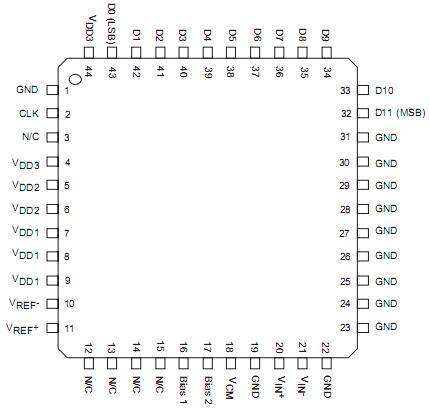

Connection Diagram


Specifications

Supply Voltages
VDD1 .................................................................... 0.5 V to +6 V
VDD2 .................................................................... 0.5 V to +6 V
VDD3 .................................................................... 0.5 V to +6 V
Input Voltages
Analog Input ................................. 0.5 V to (VDD +0.5 V)
Digital Input .................................. 0.5 V to (VDD +0.5 V)
VREF+ .......................................... 0.5 V to (VDD+0.5 V)
VREF .......................................... 0.5 V to (VDD +0.5 V)
CLK .............................................. 0.5 V to (VDD +0.5 V)
Temperature
Operating Temperature ............................. 40 to +85 °C
Storage Temperature ............................... 65 to +125 °C


Description

The SPT7935 12-bit,20 MSPS analog-to-digital converter has a pipelined converter architecture built in a CMOSprocess. It delivers high performance with a typical power dissipation of only 79 mW. With low distortion and high dynamic range, this device offers the performance needed for imaging, multimedia, telecommunications and instrumen-tation applications.

The SPT7935 is available in a 44-lead Thin Quad Flat Pack(TQFP) package in the industrial temperature range (40 to+85 °C).
