SPT9101

Output Currents
Continuous Output Current ..................................70 mA
Temperature
Operating Temperature .............................-40 to +85
Junction Temperature .........................................+150
Lead, Soldering (10 seconds) .............................+220
Storage .....................................................65 to +150
Supply Voltages
Supply Voltage (+VS) ................................-0.5 V to +6 V
Supply Voltage (-VS) .................................-6 V to +0.5 V
Input Voltages
Analog Input Voltage ............................................ ±5 V
CLK, NCLK Input .......................................-5 V to +0.5 V

Note 1: Operation at any Absolute Maximum Ratings is not implied. See Electrical Specifications for proper nominal
applied conditions in typical application.

The SPT9101 is a high-speed track-and-hold amplifier designed for a wide range of use. The SPT9101 is capable of
sampling at speeds up to 125 MSPS with resolutions ranging from 8 to 12 bits. Trim programmable internal hold and
compensation capacitors provide for optimized input bandwidth and slew rate versus noise performance.

The performance of this device makes it an excellent front end driver for a wide range of ADCs on the market today.
Significant improvements in dynamic performance can be achieved by using this device ahead of virtually all ADCs that
do not have an internal track-and-hold.

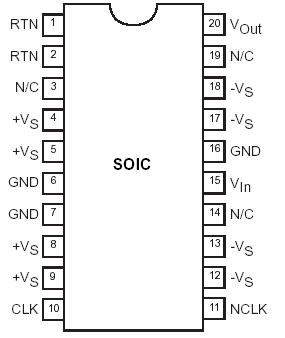

The SPT9101 is offered in 20-lead SOIC and LCC packages over the industrial temperature range and in die form. Contact the factory for military and /833 package options.
