Product Details

Description



Features:

• 400 MHz Sampling Bandwidth
• 100 MHz Sampling Rate
• Excellent Hold Mode Distortion -66 dB @ 50 MSPS (fIN = 25 MHz) -58 dB @ 100 MSPS (fIN = 50 MHz)
• Track Mode Slew Rate: 700 V/µs
• Low Power: 120 mW Differential Mode 75 mW Single-Ended Mode
• Single +5 V Supply
• Internal +2.5 V Reference




Application

• THA for Differential ADCs
• RF Demodulation Systems
• Test Instrumentation
• Digital Sampling Oscilloscopes




Pinout

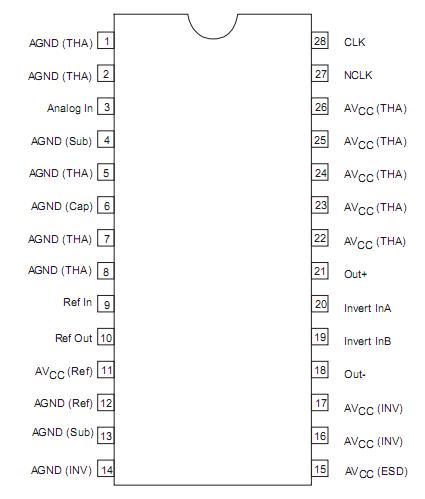

Connection Diagram


Specifications

Supply Voltages
AVCC Supplies ............................................. -0.5 to +6 V
Input Voltages
Analog Input Voltage .................................... -0.5 to +6 V
CLK, NCLK Input .......................................... -0.5 to +6 V
Ref In ............................................................ -0.5 to +6 V
Output Currents2
Continuous Output Current ................................. ±15 mA
Temperature
Operating Temperature .............................. -40 to +85 °C
Junction Temperature ......................................... +150 °C
Lead, Soldering (10 seconds) ............................. +220 °C
Storage ..................................................... -65 to +150 °C


Description

The SPT9110 is a single-to-differential track-and-hold ampli-fier. It can be operated as a single-end THA only or, in full configuration, as a single-to-differential THA. An internal reference provides the common-mode voltage for the single-to-differential output stage. The THA,inverter and reference
have separate power supply pins so each can be optionally powered up and used.

This device provides an analog designer with a low cost single-to-differential THA amplifier for interfacing differential and single-ended ADCs.

The SPT9110 is offered in a 28-lead SOIC package in the industrial temperature range.
