Purchase SPX1202, In-stock SPX1202 From SeekIC.
MFG:SIPEX 06+
- Table of contents:
SPX1202
-
Suppliers
DataSheet
General Description
SPX1202 Maximum Ratings
Power Dissipation ...................................... Internally Limited
Lead Temperature (soldering, 5 seconds) .................. 260°C
Storage Temperature Range ...................... -65°C to +150°C
Operating Junction Temperature Range ..... -40°C to +125°C
Input Supply Voltage ..................................................... +20V
ESD Rating .............................................................. 2kV min
Lead Temperature (soldering, 5 seconds) .................. 260°C
Storage Temperature Range ...................... -65°C to +150°C
Operating Junction Temperature Range ..... -40°C to +125°C
Input Supply Voltage ..................................................... +20V
ESD Rating .............................................................. 2kV min
SPX1202 Features
Guaranteed 600mA Output
Three Terminal Adjustable or Fixed
2.5V, 3V and 3.3V
Low Quiescent Current
Low Dropout Voltage of 1.1V at Full Load
0.2% Line and 0.3% Load Regulation
Voltage Temperature Stability 0.05%
Overcurrent and Thermal Protection
Available Packages: SOT-223,TO-252,
TO-220, and TO-263
Three Terminal Adjustable or Fixed
2.5V, 3V and 3.3V
Low Quiescent Current
Low Dropout Voltage of 1.1V at Full Load
0.2% Line and 0.3% Load Regulation
Voltage Temperature Stability 0.05%
Overcurrent and Thermal Protection
Available Packages: SOT-223,TO-252,
TO-220, and TO-263
SPX1202 Typical Application
SCSI-II Active Terminator
Portable/ Palm Top / Notebook
Computers
Battery Chargers
Disk Drives
Portable Consumer Equipment
Portable Instrumentation
SMPS Post-Regulator
Portable/ Palm Top / Notebook
Computers
Battery Chargers
Disk Drives
Portable Consumer Equipment
Portable Instrumentation
SMPS Post-Regulator

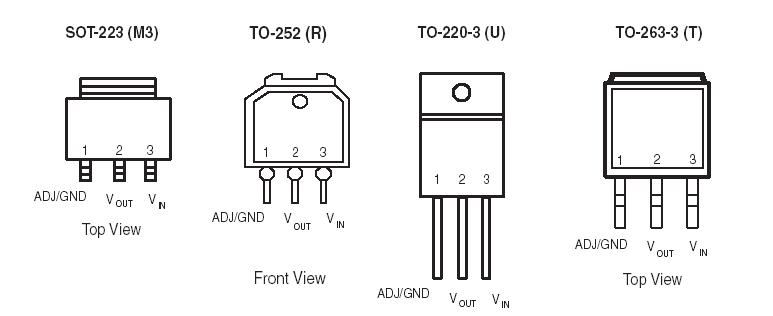

SPX1202 Connection Diagram
SPX1202
PDF/DataSheet Download
- Datasheet: SPX1202
- File Size: 215416 KB
- Manufacturer: SIPEX [Sipex Corporation]
- Click here to Download
